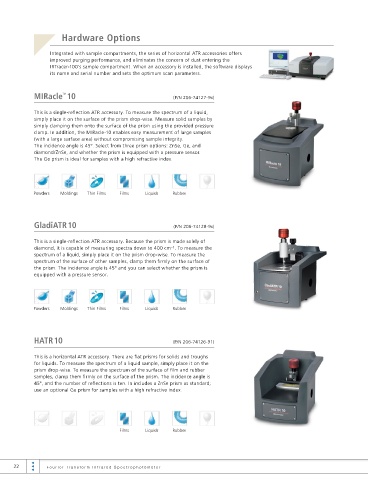

Hardware Options

                  Integrated with sample compartments, the series of horizontal ATR accessories offers
                  improved purging performance, and eliminates the concern of dust entering the
                  IRTracer-100’s sample compartment. When an accessory is installed, the software displays
                  its name and serial number and sets the optimum scan parameters.


            MIRacle  10                                   (P/N 206-74127-9x)
                      ™

            This is a single-re ection ATR accessory. To measure the spectrum of a liquid,
            simply place it on the surface of the prism drop-wise. Measure solid samples by
            simply clamping them onto the surface of the prism using the provided pressure
            clamp. In addition, the MIRacle-10 enables easy measurement of large samples
            (with a large surface area) without compromising sample integrity.
            The incidence angle is 45°. Select from three prism options: ZnSe, Ge, and
            diamond/ZnSe, and whether the prism is equipped with a pressure sensor.
            The Ge prism is ideal for samples with a high refractive index.






            Powders  Moldings  Thin Films  Films  Liquids  Rubber




            GladiATR 10                                    (P/N 206-74128-9x)

            This is a single-re ection ATR accessory. Because the prism is made solely of
            diamond, it is capable of measuring spectra down to 400 cm . To measure the
                                                          -1
            spectrum of a liquid, simply place it on the prism drop-wise. To measure the
            spectrum of the surface of other samples, clamp them  rmly on the surface of
            the prism. The incidence angle is 45° and you can select whether the prism is
            equipped with a pressure sensor.





            Powders  Moldings  Thin Films  Films  Liquids  Rubber




            HATR 10                                       (P/N 206-74126-91)


            This is a horizontal ATR accessory. There are  at prisms for solids and troughs
            for liquids. To measure the spectrum of a liquid sample, simply place it on the
            prism drop-wise. To measure the spectrum of the surface of  lm and rubber
            samples, clamp them  rmly on the surface of the prism. The incidence angle is
            45°, and the number of re ections is ten. In includes a ZnSe prism as standard;
            use an optional Ge prism for samples with a high refractive index.






                                         Films   Liquids  Rubber
