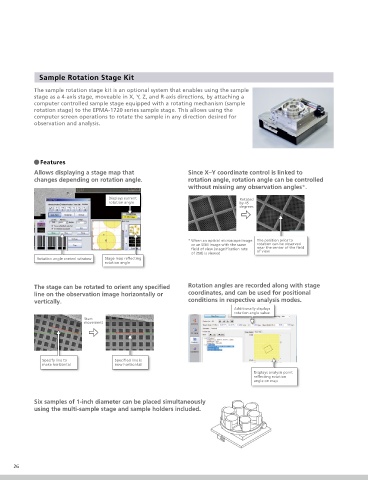

Sample Rotation Stage Kit

The sample rotation stage kit is an optional system that enables using the sample
stage as a 4-axis stage, moveable in X, Y, Z, and R-axis directions, by attaching a
computer controlled sample stage equipped with a rotating mechanism (sample
rotation stage) to the EPMA-1720 series sample stage. This allows using the
computer screen operations to rotate the sample in any direction desired for
observation and analysis.

• Features
Allows displaying a stage map that Since X–Y coordinate control is linked to
changes depending on rotation angle. rotation angle, rotation angle can be controlled
without missing any observation angles*.
Displays current Rotated
rotation angle by 45
degrees

* When an optical microscope image The position prior to
or an SEM image with the same rotation can be observed
field of view (magnification rate near the center of the field
of view
of 250) is viewed
Rotation angle control window Stage map reflecting
rotation angle

The stage can be rotated to orient any specified Rotation angles are recorded along with stage
line on the observation image horizontally or coordinates, and can be used for positional
y
p
vertically. conditions in respective analysis modes.
Additionally displays
rotation angle value
Start
movement

Specify line to Specified line is
make horizontal now horizontal
Displays analysis point
reflecting rotation
angle on map

Six samples of 1-inch diameter can be placed simultaneously
using the multi-sample stage and sample holders included.
