Page 23 - Shimadzu EDX-8100

™

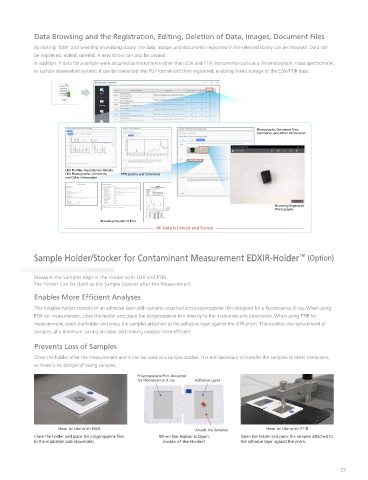

EDXIR-Analysis Software (Option) Data Browsing and the Registration, Editing, Deletion of Data, Images, Document Files
By clicking “Edit” and selecting an existing library, the data, images and documents registered in the selected library can be browsed. Data can
EDXIR-Analysis software is specially designed to perform qualitative analysis using data be registered, edited, deleted. A new library can also be created.
acquired by an energy dispersive X-ray (EDX) fluorescence spectrometer and a Fourier In addition, if data for a sample were acquired by instruments other than EDX and FTIR instruments (such as a chromatograph, mass spectrometer,
transform infrared (FTIR) spectrophotometer. or surface observation system), it can be converted into PDF format and then registered, enabling linked storage to the EDX/FTIR data.
This software is used to perform an integrated analysis of data from FTIR, which is
excellent at the identification and qualification of organic compounds, and from EDX,
which is excellent at the elementary analysis of metals, inorganic compounds and other
content. It then pursues identification results and the degree of matching. It can also be
used to perform EDX or FTIR data analysis on its own.
The library used for data analysis (containing 485 data as standard) is original to
Shimadzu, and was created through cooperation with water supply agencies and food
manufacturers. Additional data can be registered to the library, as can image files and
document files in PDF format. It is also effective for the linked storage of various types Photographs, Document Files,
Comments, and Other Information
of data as electronic files.

Integrated Analysis of Contaminant Data and Data Comparisons for Confirmation Tests

To perform qualitative analysis automatically, simply click “Analyze Both Data” and select the EDX/FTIR data *1 . This heightens the EDX Profiles, Quantitation Results,
EDX Photographs, Comments, FTIR Spectra and Comments
efficiency of data analysis and provides strong support for contaminant analysis. and Other Information
In addition to a list of hits, the integrated data analysis results show EDX profiles and FTIR spectra found as hits from the library. If the
user wishes to browse the respective data analysis results, they can be checked by clicking “Single”.
In addition, with the data comparison function, which calculates the degree of matching between the actual measured data and the
Browsing Registered
*2
data registered in the library, the software can be used for countermeasures against "silent change" and for other confirmation tests. Photographs
*3
Clicking the “Print” button prints the results in a fixed format and also saves them in Word format .
Browsing Document Files
*1: Using the EDX profile, data are classified as inorganic, organic, and mixture. Integrated data analysis is performed by applying priority levels to each classification. (Patent pending) All Data Is Linked and Stored
*2: A term used in Japan to indicate changes to materials by suppliers without the knowledge of the manufacturers.
*3: Microsoft ® Word must first be installed.
The examples here show an integrated analysis of black rubber contaminant data acquired and a data comparison for a polyvinyl
™
chloride (PVC) examination object and the standard product. From the integrated data analysis results, it is evident that the black rubber Sample Holder/Stocker for Contaminant Measurement EDXIR-Holder (Option)
contaminant is acrylonitrile-butadiene rubber (NBR), which contains calcium carbonate and zinc stearate. In addition, from the data comparison,
the degree of matching between the PVC examination object and the standard product is 0.8506. Lead (Pb) and acrylic were detected from
the EDX and FTIR data, but were not detected in the standard product. Accordingly, it is surmised that the examination object contains Measure the Samples Kept in the Holder with EDX and FTIR
The Holder Can Be Used as the Sample Stocker after the Measurement
components different to those in the standard product.
Enables More Efficient Analyses

This foldable holder consists of an adhesive layer with samples attached and polypropylene film designed for a fluorescence X-ray. When using
EDX for measurement, close the holder and place the polypropylene film directly to the irradiation side (downside). When using FTIR for
EDX Data FTIR Data measurement, open the holder and press the samples attached to the adhesive layer against the ATR prism. This enables the replacement of
EDX-8100 FTIR+Single Re ection ATR Accessory samples, at a minimum, saving on labor and making analysis more efficient.
Loading the Acquired Data
Prevents Loss of Samples

Integrated Data Analysis Data Comparison Close the holder after the measurement and it can be used as a sample stocker. It is not necessary to transfer the samples to other containers,
so there is no danger of losing samples.
Polypropylene Film Designed
for Fluorescence X-ray Adhesive Layer

How to Use with EDX Attach the Samples How to Use with FTIR
Integrated Data Analysis Results for a Black Rubber Data Comparison Results for a Close the holder and place the polypropylene lm When the Holder is Open Open the holder and press the samples attached to
Contaminant PVC Examination Object and the Standard Product to the irradiation side (downside). (Inside of the Holder) the adhesive layer against the prism.

22 23
