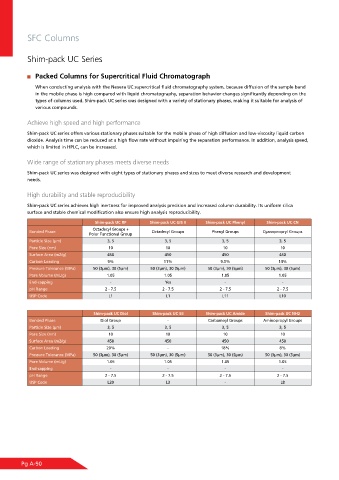

Page 94 - Shimadu Consumables Catalog

SFC Columns

Shim-pack UC Series

Packed Columns for Supercritical Fluid Chromatograph
When conducting analysis with the Nexera UC supercritical fluid chromatography system, because diffusion of the sample band
in the mobile phase is high compared with liquid chromatography, separation behavior changes significantly depending on the
types of columns used. Shim-pack UC series was designed with a variety of stationary phases, making it suitable for analysis of
various compounds.

Achieve high speed and high performance

Shim-pack UC series offers various stationary phases suitable for the mobile phase of high diffusion and low-viscosity liquid carbon
dioxide. Analysis time can be reduced at a high flow rate without impairing the separation performance. In addition, analysis speed,
which is limited in HPLC, can be increased.

Wide range of stationary phases meets diverse needs
Shim-pack UC series was designed with eight types of stationary phases and sizes to meet diverse research and development
needs.

High durability and stable reproducibility
Shim-pack UC series achieves high inertness for improved analysis precision and increased column durability. Its uniform silica
surface and stable chemical modification also ensure high analysis reproducibility.
Shim-pack UC RP Shim-pack UC GIS II Shim-pack UC Phenyl Shim-pack UC CN
Octadecyl Groups +
Bonded Phase Octadecyl Groups Phenyl Groups Cyanopropryl Groups
Polar Functional Group
Particle Size (μm) 3, 5 3, 5 3, 5 3, 5
Pore Size (nm) 10 10 10 10
Surface Area (m2/g) 450 450 450 450
Carbon Loading 9% 11% 9.5% 14%
Pressure Tolerance (MPa) 50 (3μm), 30 (5μm) 50 (3μm), 30 (5μm) 50 (3μm), 30 (5μm) 50 (3μm), 30 (5μm)
Pore Volume (mL/g) 1.05 1.05 1.05 1.05
End-capping - Yes - -
pH Range 2 - 7.5 2 - 7.5 2 - 7.5 2 - 7.5
USP Code L1 L1 L11 L10

Shim-pack UC Diol Shim-pack UC Sil Shim-pack UC Amide Shim-pack UC NH2
Bonded Phase Diol Group - Carbamoyl Groups Aminopropyl Groups
Particle Size (μm) 3, 5 3, 5 3, 5 3, 5
Pore Size (nm) 10 10 10 10
Surface Area (m2/g) 450 450 450 450
Carbon Loading 20% - 18% 8%
Pressure Tolerance (MPa) 50 (3μm), 30 (5μm) 50 (3μm), 30 (5μm) 50 (3μm), 30 (5μm) 50 (3μm), 30 (5μm)
Pore Volume (mL/g) 1.05 1.05 1.05 1.05
End-capping - - - -
pH Range 2 - 7.5 2 - 7.5 2 - 7.5 2 - 7.5
USP Code L20 L3 - L8
