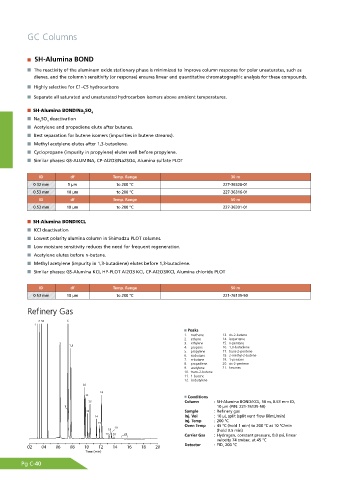

Page 190 - Shimadu Consumables Catalog

GC Columns

SH-Alumina BOND

The reactivity of the aluminum oxide stationary phase is minimized to improve column response for polar unsaturates, such as
dienes, and the column's sensitivity (or response) ensures linear and quantitative chromatographic analysis for these compounds.
Highly selective for C1–C5 hydrocarbons

Separate all saturated and unsaturated hydrocarbon isomers above ambient temperatures.

SH-Alumina BOND/Na SO
2 4
Na SO deactivation
2 4
Acetylene and propadiene elute after butanes.
Best separation for butene isomers (impurities in butene streams).
Methyl acetylene elutes after 1,3-butadiene.
Cyclopropane (impurity in propylene) elutes well before propylene.
Similar phases: GS-ALUMINA, CP-Al2O3/Na2SO4, Alumina sulfate PLOT

ID df Temp. Range 30 m
0.32 mm 5 µm to 200 °C 227-36328-01
0.53 mm 10 µm to 200 °C 227-36316-01
ID df Temp. Range 50 m
0.53 mm 10 µm to 200 °C 227-36301-01

SH-Alumina BOND/KCL
KCl deactivation
Lowest polarity alumina column in Shimadzu PLOT columns.
Low moisture sensitivity reduces the need for frequent regeneration.
Acetylene elutes before n-butane.
Methyl acetylene (impurity in 1,3-butadiene) elutes before 1,3-butadiene.
Similar phases: GS-Alumina KCI, HP-PLOT Al2O3 KCl, CP-Al2O3/KCl, Alumina chloride PLOT

ID df Temp. Range 50 m
0.53 mm 10 µm to 200 °C 221-76139-50

Refinery Gas

2 34 6
1
Peaks
1. methane 13. cis-2-butene
2. ethane 14. isopentane
5 3. ethylene 15. n-pentane
7,8 4. propane 16. 1,3-butadiene
5. propylene 17. trans-2-pentene
6. isobutane 18. 2-methyl-2-butene
7. n-butane 19. 1-pentene
8. propadiene 20. cis-2-pentene
9. acetylene 21. hexanes
10. trans-2-butene
11. 1-butene
12. isobutylene
10
16
11
Conditions
13 Column : SH-Alumina BOND/KCL, 50 m, 0.53 mm ID,
9 10 μm (P/N: 221-76139-50)
12 Sample : Refinery gas
14 Inj. Vol : 10 μL split (split vent flow 80mL/min)
Inj. Temp : 200 °C
15
18 19 Oven Temp : 45 °C (hold 1 min) to 200 °C at 10 °C/min

(hold 3.5 min)
17 20 21 Carrier Gas : Hydrogen, constant pressure, 8.0 psi, linear
velocity 74 cm/sec. at 45 °C
02 04 06 08 10 12 14 16 18 20 Detector : FID, 200 °C
Time (min)
Pg C-40
