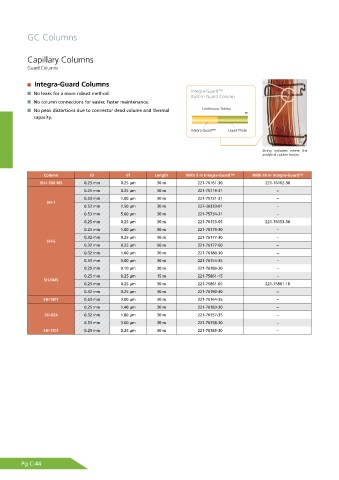

Page 194 - Shimadu Consumables Catalog

GC Columns

Capillary Columns
Guard Columns

Integra-Guard Columns
Integra-Guard™
No leaks for a more robust method.
Built-In Guard Column
No column connections for easier, faster maintenance.
No peak distortions due to connector dead volume and thermal Continuous Tubing
capacity.

Integra-Guard™ Liquid Phase

String indicates where the
analytical column begins

Column ID df Length With 5 m Integra-Guard™ With 10 m Integra-Guard™
SH-I-5Sil MS 0.25 mm 0.25 µm 30 m 221-76161-30 221-76162-30
0.25 mm 0.25 µm 30 m 221-75719-31 −
0.53 mm 1.00 µm 30 m 221-75731-31 −
SH-1
0.53 mm 1.50 µm 30 m 227-36333-01 −
0.53 mm 5.00 µm 30 m 221-75734-31 −
0.25 mm 0.25 µm 30 m 221-76153-05 221-76153-30
0.25 mm 1.00 µm 30 m 221-76179-30 −
0.32 mm 0.25 µm 30 m 221-76177-30 −
SH-5
0.32 mm 0.25 µm 60 m 221-76177-60 −
0.32 mm 1.00 µm 30 m 221-76180-30 −
0.53 mm 5.00 µm 30 m 221-76154-35 −
0.25 mm 0.10 µm 30 m 221-76189-30 −
0.25 mm 0.25 µm 15 m 221-75861-15 −
SH-5MS
0.25 mm 0.25 µm 30 m 221-75861-05 221-75861-10
0.32 mm 0.25 µm 30 m 221-76190-30 −
SH-1301 0.53 mm 3.00 µm 30 m 221-76164-35 −
0.25 mm 1.40 µm 30 m 221-76183-30 −
SH-624 0.32 mm 1.80 µm 30 m 221-76157-35 −
0.53 mm 3.00 µm 30 m 221-76158-30 −
SH-1701 0.25 mm 0.25 µm 30 m 221-76185-30 −

Pg C-44
