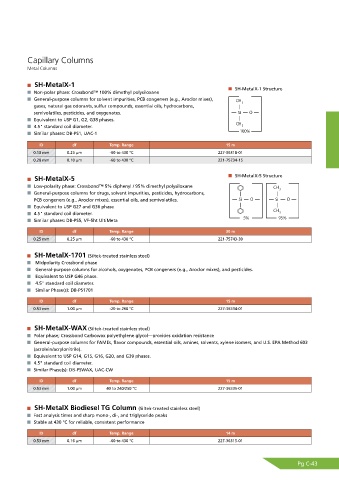

Page 193 - Shimadu Consumables Catalog

Capillary Columns
Metal Columns

SH-MetalX-1
Non-polar phase: Crossbond™ 100% dimethyl polysiloxane SH-MetalX-1 Structure
General-purpose columns for solvent impurities, PCB congeners (e.g., Aroclor mixes), $)
gases, natural gas odorants, sulfur compounds, essential oils, hydrocarbons,
semivolatiles, pesticides, and oxygenates. 4J 0
Equivalent to USP G1, G2, G38 phases.
$)
4.5" standard coil diameter.
Similar phases: DB-PS1, UAC-1
ID df Temp. Range 15 m
0.10 mm 0.25 µm -60 to 430 °C 227-36318-01
0.28 mm 0.10 µm -60 to 430 °C 221-75734-15

SH-MetalX-5 SH-MetalX-5 Structure
Low-polarity phase: Crossbond™ 5% diphenyl / 95% dimethyl polysiloxane $)
General-purpose columns for drugs, solvent impurities, pesticides, hydrocarbons,
PCB congeners (e.g., Aroclor mixes), essential oils, and semivolatiles. 4J 0 4J 0
Equivalent to USP G27 and G36 phase
$)
4.5" standard coil diameter.
Similar phases: DB-PS5, VF-5ht UltiMeta
ID df Temp. Range 30 m
0.25 mm 0.25 µm -60 to 430 °C 221-75743-30

SH-MetalX-1701 (Siltek-treated stainless steel)
Midpolarity Crossbond phase
General-purpose columns for alcohols, oxygenates, PCB congeners (e.g., Aroclor mixes), and pesticides.
Equivalent to USP G46 phase.
4.5" standard coil diameter.
Similar Phase(s): DB-PS1701

ID df Temp. Range 15 m
0.53 mm 1.00 µm -20 to 260 °C 227-36334-01

SH-MetalX-WAX (Siltek-treated stainless steel)
Polar phase; Crossbond Carbowax polyethylene glycol—provides oxidation resistance
General-purpose columns for FAMEs, flavor compounds, essential oils, amines, solvents, xylene isomers, and U.S. EPA Method 603
(acrolein/acrylonitrile).
Equivalent to USP G14, G15, G16, G20, and G39 phases.
4.5" standard coil diameter.
Similar Phase(s): DB-PSWAX, UAC-CW

ID df Temp. Range 15 m
0.53 mm 1.00 µm 40 to 240/250 °C 227-36335-01

SH-MetalX Biodiesel TG Column (Siltek-treated stainless steel)
Fast analysis times and sharp mono-, di-, and triglyceride peaks
Stable at 430 °C for reliable, consistent performance
ID df Temp. Range 14 m
0.53 mm 0.16 µm -60 to 430 °C 227-36315-01

Pg C-43
