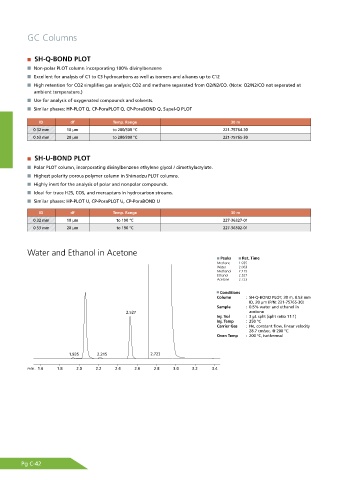

Page 192 - Shimadu Consumables Catalog

GC Columns

SH-Q-BOND PLOT
Non-polar PLOT column incorporating 100% divinylbenzene
Excellent for analysis of C1 to C3 hydrocarbons as well as isomers and alkanes up to C12
High retention for CO2 simplifies gas analysis; CO2 and methane separated from O2/N2/CO. (Note: O2/N2/CO not separated at
ambient temperature.)
Use for analysis of oxygenated compounds and solvents.
Similar phases: HP-PLOT Q, CP-PoraPLOT Q, CP-PoraBOND Q, Supel-Q PLOT

ID df Temp. Range 30 m
0.32 mm 10 µm to 280/300 °C 221-75764-30
0.53 mm 20 µm to 280/300 °C 221-75765-30

SH-U-BOND PLOT
Polar PLOT column, incorporating divinylbenzene ethylene glycol / dimethylacrylate.
Highest polarity porous polymer column in Shimadzu PLOT columns.
Highly inert for the analysis of polar and nonpolar compounds.
Ideal for trace H2S, COS, and mercaptans in hydrocarbon streams.
Similar phases: HP-PLOT U, CP-PoraPLOT U, CP-PoraBOND U
ID df Temp. Range 30 m
0.32 mm 10 µm to 190 °C 227-36327-01
0.53 mm 20 µm to 190 °C 227-36302-01

Water and Ethanol in Acetone
Peaks Ret. Time
Methane 1.935
Water 2.063
Methanol 2.215
Ethanol 2.527
Acetone 2.723

Conditions
Column : SH-Q-BOND PLOT, 30 m, 0.53 mm
ID, 20 μm (P/N: 221-75765-30)
Sample : 0.5% water and ethanol in
2.527 Inj. Vol acetone
: 3 μL split (split ratio 11:1)
Inj. Temp : 250 °C
Carrier Gas : He, constant flow, linear velocity
28.7 cm/sec. @ 200 °C
Oven Temp : 200 °C, isothermal

1.935 2.215 2.723

min. 1.6 1.8 2.0 2.2 2.4 2.6 2.8 3.0 3.2 3.4

Pg C-42
