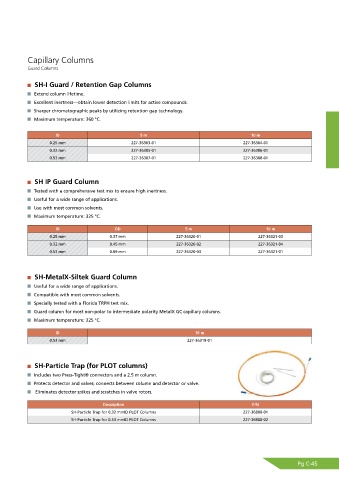

Page 195 - Shimadu Consumables Catalog

Capillary Columns
Guard Columns

SH-I Guard / Retention Gap Columns
Extend column lifetime.
Excellent inertness—obtain lower detection limits for active compounds.
Sharper chromatographic peaks by utilizing retention gap technology.
Maximum temperature: 360 °C.

ID 5 m 10 m
0.25 mm 227-36303-01 227-36304-01
0.32 mm 227-36305-01 227-36306-01
0.53 mm 227-36307-01 227-36308-01

SH IP Guard Column
Tested with a comprehensive test mix to ensure high inertness.
Useful for a wide range of applications.
Use with most common solvents.
Maximum temperature: 325 °C.

ID OD 5 m 10 m
0.25 mm 0.37 mm 227-36320-01 227-36321-03
0.32 mm 0.45 mm 227-36320-02 227-36321-04
0.53 mm 0.69 mm 227-36320-03 227-36321-01

SH-MetalX-Siltek Guard Column
Useful for a wide range of applications.
Compatible with most common solvents.
Specially tested with a Florida TRPH test mix.
Guard column for most non-polar to intermediate polarity MetalX GC capillary columns.
Maximum temperature: 325 °C.
ID 10 m
0.53 mm 227-36319-01

SH-Particle Trap (for PLOT columns)

Includes two Press-Tight® connectors and a 2.5 m column.
Protects detector and valves; connects between column and detector or valve.
Eliminates detector spikes and scratches in valve rotors.

Description P/N
SH-Particle Trap for 0.32 mmID PLOT Columns 227-36800-01
SH-Particle Trap for 0.53 mmID PLOT Columns 227-36800-02

Pg C-45
