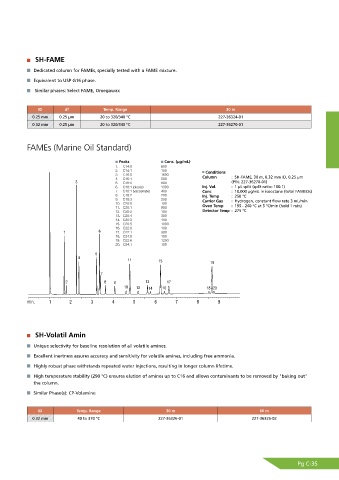

Page 185 - Shimadu Consumables Catalog

SH-FAME

Dedicated column for FAMEs, specially tested with a FAME mixture.
Equivalent to USP G16 phase.
Similar phases: Select FAME, Omegawax

ID df Temp. Range 30 m
0.25 mm 0.25 µm 20 to 320/340 °C 227-36324-01
0.32 mm 0.25 µm 20 to 320/340 °C 227-36270-01

FAMEs (Marine Oil Standard)

Peaks Conc. (μg/mL)
1. C14:0 600
2. C14:1 100 Conditions
3. C16:0 1600
4. C16:1 500 Column : SH-FAME, 30 m, 0.32 mm ID, 0.25 μm
5. C18:0 800 (P/N: 227-36270-01)
6. C18:1 (oleate) 1300 Inj. Vol. : 1 μL split (split ratio: 100:1)
7. C18:1 (vaccenate) 400 Conc : 10,000 μg/mL in isooctane (total FAMEOs)
8. C18:2 200 Inj. Temp : 250 °C
9. C18:3 200 Carrier Gas : Hydrogen, constant flow rate 3 mL/min
10. C20:0 100
11. C20:1 900 Oven Temp : 195 - 240 °C at 5 °C/min (hold 1 min)
12. C20:2 100 Detector Temp : 275 °C
13. C20:4 300
14. C20:3 100
15. C20:5 1000
16. C22:0 100
17. C22:1 300
18. C24:0 100
19. C22:6 1200
20. C24:1 100

SH-Volatil Amin

Unique selectivity for baseline resolution of all volatile amines.
Excellent inertness assures accuracy and sensitivity for volatile amines, including free ammonia.

Highly robust phase withstands repeated water injections, resulting in longer column lifetime.
High temperature stability (290 °C) ensures elution of amines up to C16 and allows contaminants to be removed by "baking out"
the column.

Similar Phase(s): CP-Volamine

ID Temp. Range 30 m 60 m
0.32 mm 40 to 370 °C 227-36326-01 227-36326-02
