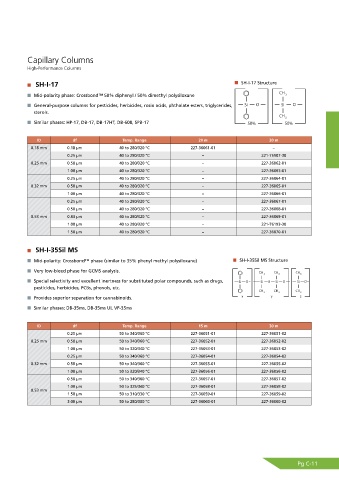

Capillary Columns
High-Performance Columns

SH-I-17 SH-I-17 Structure
Mid-polarity phase: Crossbond™ 50% diphenyl / 50% dimethyl polysiloxane $)
General-purpose columns for pesticides, herbicides, rosin acids, phthalate esters, triglycerides, 4J 0 4J 0
sterols.
$)
Similar phases: HP-17, DB-17, DB-17HT, DB-608, SPB-17

ID df Temp. Range 20 m 30 m
0.18 mm 0.18 µm 40 to 280/320 °C 227-36061-01 −
0.25 µm 40 to 280/320 °C − 221-75907-30
0.25 mm 0.50 µm 40 to 280/320 °C − 227-36062-01
1.00 µm 40 to 280/320 °C − 227-36063-01
0.25 µm 40 to 280/320 °C − 227-36064-01
0.32 mm 0.50 µm 40 to 280/320 °C − 227-36065-01
1.00 µm 40 to 280/320 °C − 227-36066-01
0.25 µm 40 to 280/320 °C − 227-36067-01
0.50 µm 40 to 280/320 °C − 227-36068-01
0.53 mm 0.83 µm 40 to 280/320 °C − 227-36069-01
1.00 µm 40 to 280/320 °C − 221-76193-30
1.50 µm 40 to 280/320 °C − 227-36070-01

SH-I-35Sil MS
Mid-polarity: Crossbond™ phase (similar to 35% phenyl methyl polysiloxane) SH-I-35Sil MS Structure

Very low-bleed phase for GCMS analysis.
$) $) $)
Special selectivity and excellent inertness for substituted polar compounds, such as drugs, 4J 0 4J 3 4J 0 4J 0
pesticides, herbicides, PCBs, phenols, etc.
$) $) $)
Provides superior separation for cannabinoids. Y Z [
Similar phases: DB-35ms, DB-35ms UI, VF-35ms

ID df Temp. Range 15 m 30 m
0.25 µm 50 to 340/360 °C 227-36051-01 227-36051-02
0.25 mm 0.50 µm 50 to 340/360 °C 227-36052-01 227-36052-02
1.00 µm 50 to 320/340 °C 227-36053-01 227-36053-02
0.25 µm 50 to 340/360 °C 227-36054-01 227-36054-02
0.32 mm 0.50 µm 50 to 340/360 °C 227-36055-01 227-36055-02
1.00 µm 50 to 320/340 °C 227-36056-01 227-36056-02
0.50 µm 50 to 340/360 °C 227-36057-01 227-36057-02
1.00 µm 50 to 325/340 °C 227-36058-01 227-36058-02
0.53 mm
1.50 µm 50 to 310/330 °C 227-36059-01 227-36059-02
3.00 µm 50 to 280/300 °C 227-36060-01 227-36060-02
