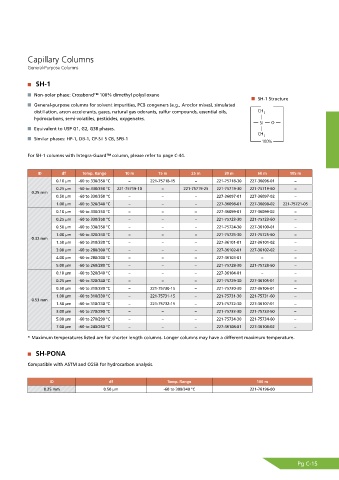

Page 165 - Shimadu Consumables Catalog

Capillary Columns
General-Purpose Columns

SH-1
Non-polar phase: Crossbond™ 100% dimethyl polysiloxane
SH-1 Structure
General-purpose columns for solvent impurities, PCB congeners (e.g., Aroclor mixes), simulated
$)
distillation, arson accelerants, gases, natural gas odorants, sulfur compounds, essential oils, $)
hydrocarbons, semi-volatiles, pesticides, oxygenates.
4J 4J 0 0
Equivalent to USP G1, G2, G38 phases.
$)
$)
Similar phases: HP-1, DB-1, CP-Sil 5 CB, SPB-1

For SH-1 columns with Integra-Guard™ column, please refer to page C-44.

ID df Temp. Range 10 m 15 m 25 m 30 m 60 m 105 m
0.10 µm -60 to 330/350 °C − 221-75718-15 − 221-75718-30 227-36096-01 −
0.25 µm -60 to 330/350 °C 221-75719-10 − 221-75719-25 221-75719-30 221-75719-60 −
0.25 mm
0.50 µm -60 to 330/350 °C − − − 227-36097-01 227-36097-02 −
1.00 µm -60 to 320/340 °C − − − 227-36098-01 227-36098-02 221-75721-05
0.10 µm -60 to 330/350 °C − − − 227-36099-01 227-36099-02 −
0.25 µm -60 to 330/350 °C − − − 221-75723-30 221-75723-60 −
0.50 µm -60 to 330/350 °C − − − 221-75724-30 227-36100-01 −
1.00 µm -60 to 320/340 °C − − − 221-75725-30 221-75725-60 −
0.32 mm
1.50 µm -60 to 310/330 °C − − − 227-36101-01 227-36101-02 −
3.00 µm -60 to 280/300 °C − − − 227-36102-01 227-36102-02 −
4.00 µm -60 to 280/300 °C − − − 227-36103-01 − −
5.00 µm -60 to 260/280 °C − − − 221-75728-30 221-75728-60 −
0.10 µm -60 to 320/340 °C − − − 227-36104-01 − −
0.25 µm -60 to 320/340 °C − − − 221-75729-30 227-36105-01 −
0.50 µm -60 to 310/330 °C − 221-75730-15 − 221-75730-30 227-36106-01 −
1.00 µm -60 to 310/330 °C − 221-75731-15 − 221-75731-30 221-75731-60 −
0.53 mm
1.50 µm -60 to 310/330 °C − 221-75732-15 − 221-75732-30 227-36107-01 −
3.00 µm -60 to 270/290 °C − − − 221-75733-30 221-75733-60 −
5.00 µm -60 to 270/290 °C − − − 221-75734-30 221-75734-60 −
7.00 µm -60 to 240/260 °C − − − 227-36108-01 227-36108-02 −
* Maximum temperatures listed are for shorter length columns. Longer columns may have a different maximum temperature.

SH-PONA
Compatible with ASTM and CGSB for hydrocarbon analysis.

ID df Temp. Range 100 m
0.25 mm 0.50 µm -60 to 300/340 °C 221-76196-00

Pg C-15
