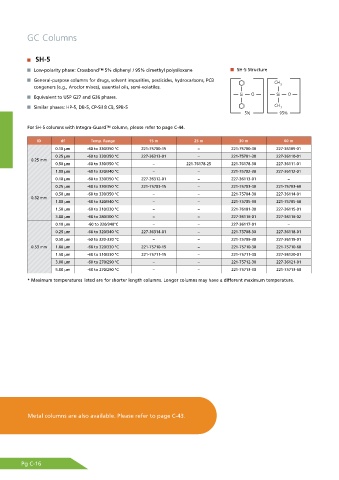

GC Columns

SH-5

Low-polarity phase: Crossbond™ 5% diphenyl / 95% dimethyl polysiloxane SH-5 Structure
General-purpose columns for drugs, solvent impurities, pesticides, hydrocarbons, PCB
$)
congeners (e.g., Aroclor mixes), essential oils, semi-volatiles.
4J 0 4J 0
Equivalent to USP G27 and G36 phases.
Similar phases: HP-5, DB-5, CP-Sil 8 CB, SPB-5 $)

For SH-5 columns with Integra-Guard™ column, please refer to page C-44.

ID df Temp. Range 15 m 25 m 30 m 60 m
0.10 µm -60 to 330/350 °C 221-75700-15 − 221-75700-30 227-36109-01
0.25 µm -60 to 330/350 °C 227-36313-01 − 221-75701-30 227-36110-01
0.25 mm
0.50 µm -60 to 330/350 °C − 221-76178-25 221-76178-30 227-36111-01
1.00 µm -60 to 320/340 °C − − 221-75702-30 227-36112-01
0.10 µm -60 to 330/350 °C 227-36312-01 − 227-36113-01 −
0.25 µm -60 to 330/350 °C 221-75703-15 − 221-75703-30 221-75703-60
0.50 µm -60 to 330/350 °C − − 221-75704-30 227-36114-01
0.32 mm
1.00 µm -60 to 320/340 °C − − 221-75705-30 221-75705-60
1.50 µm -60 to 310/330 °C − − 221-76181-30 227-36115-01
3.00 µm -60 to 280/300 °C − − 227-36116-01 227-36116-02
0.10 µm -60 to 320/340°C − − 227-36117-01 −
0.25 µm -60 to 320/340 °C 227-36314-01 − 221-75708-30 227-36118-01
0.50 µm -60 to 320-330 °C − − 221-75709-30 227-36119-01
0.53 mm 1.00 µm -60 to 320/330 °C 221-75710-15 − 221-75710-30 221-75710-60
1.50 µm -60 to 310/330 °C 221-75711-15 − 221-75711-30 227-36120-01
3.00 µm -60 to 270/290 °C − − 221-75712-30 227-36121-01
5.00 µm -60 to 270/290 °C − − 221-75713-30 221-75713-60
* Maximum temperatures listed are for shorter length columns. Longer columns may have a different maximum temperature.

Metal columns are also available. Please refer to page C-43.

Pg C-16
