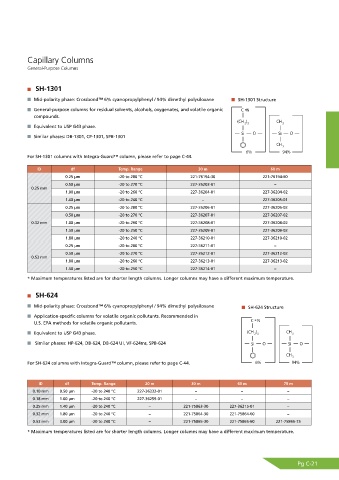

Page 171 - Shimadu Consumables Catalog

Capillary Columns
General-Purpose Columns

SH-1301

Mid-polarity phase: Crossbond™ 6% cyanopropylphenyl / 94% dimethyl polysiloxane SH-1301 Structure
General-purpose columns for residual solvents, alcohols, oxygenates, and volatile organic $ /
compounds.
$) $)

Equivalent to USP G43 phase.
4J 0 4J 0
Similar phases: DB-1301, CP-1301, SPB-1301
$)

For SH-1301 columns with Integra-Guard™ column, please refer to page C-44.
ID df Temp. Range 30 m 60 m
0.25 µm -20 to 280 °C 221-76194-30 221-76194-60
0.50 µm -20 to 270 °C 227-36203-01 −
0.25 mm
1.00 µm -20 to 260 °C 227-36204-01 227-36204-02
1.40 µm -20 to 240 °C − 227-36205-01
0.25 µm -20 to 280 °C 227-36206-01 227-36206-02
0.50 µm -20 to 270 °C 227-36207-01 227-36207-02
0.32 mm 1.00 µm -20 to 260 °C 227-36208-01 227-36208-02
1.50 µm -20 to 250 °C 227-36209-01 227-36209-02
1.80 µm -20 to 240 °C 227-36210-01 227-36210-02
0.25 µm -20 to 280 °C 227-36211-01 −
0.50 µm -20 to 270 °C 227-36212-01 227-36212-02
0.53 mm
1.00 µm -20 to 260 °C 227-36213-01 227-36213-02
1.50 µm -20 to 250 °C 227-36214-01 −
* Maximum temperatures listed are for shorter length columns. Longer columns may have a different maximum temperature.

SH-624
Mid-polarity phase: Crossbond™ 6% cyanopropylphenyl / 94% dimethyl polysiloxane SH-624 Structure

Application-specific columns for volatile organic pollutants. Recommended in
U.S. EPA methods for volatile organic pollutants. $ /
Equivalent to USP G43 phase. $) $)

Similar phases: HP-624, DB-624, DB-624 UI, VF-624ms, SPB-624 4J 0 4J 0
$)

For SH-624 columns with Integra-Guard™ column, please refer to page C-44.

ID df Temp. Range 20 m 30 m 60 m 75 m
0.10 mm 0.50 µm -20 to 240 °C 227-36332-01 − − −
0.18 mm 1.00 µm -20 to 240 °C 227-36259-01 − − −
0.25 mm 1.40 µm -20 to 240 °C − 221-75863-30 227-36215-01 −
0.32 mm 1.80 µm -20 to 240 °C − 221-75864-30 221-75864-60 −
0.53 mm 3.00 µm -20 to 240 °C − 221-75865-30 221-75865-60 221-75865-75
* Maximum temperatures listed are for shorter length columns. Longer columns may have a different maximum temperature.

Pg C-21
