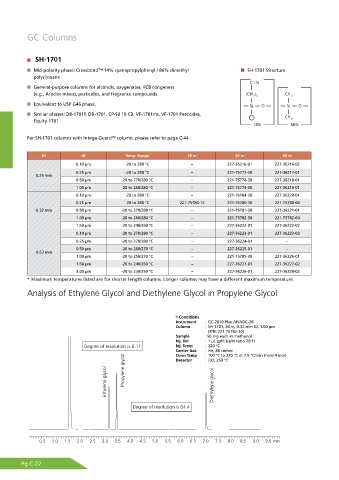

Page 172 - Shimadu Consumables Catalog

GC Columns

SH-1701

Mid-polarity phase: Crossbond™ 14% cyanopropylphenyl / 86% dimethyl SH-1701 Structure
polysiloxane
$ /
General-purpose columns for alcohols, oxygenates, PCB congeners
(e.g., Aroclor mixes), pesticides, and fragrance compounds. $) $)

Equivalent to USP G46 phase.
4J 0 4J 0
Similar phases: DB-1701P, DB-1701, CP-Sil 19 CB, VF-1701ms, VF-1701 Pesticides, $)
Equity-1701

For SH-1701 columns with Intega-Guard column, please refer to page C-44.
TM

ID df Temp. Range 15 m 30 m 60 m
0.10 µm -20 to 280 °C − 227-36216-01 227-36216-02
0.25 µm -20 to 280 °C − 221-75777-30 227-36217-01
0.25 mm
0.50 µm -20 to 270/280 °C − 221-75778-30 227-36218-01
1.00 µm -20 to 260/280 °C − 221-75779-30 227-36219-01
0.10 µm -20 to 280 °C − 221-76184-30 227-36220-01
0.25 µm -20 to 280 °C 221-75780-15 221-75780-30 221-75780-60
0.32 mm 0.50 µm -20 to 270/280 °C − 221-75781-30 227-36221-01
1.00 µm -20 to 260/280 °C − 221-75782-30 221-75782-60
1.50 µm -20 to 240/260 °C − 227-36222-01 227-36222-02
0.10 µm -20 to 270/280 °C − 227-36223-01 227-36223-02
0.25 µm -20 to 270/280 °C − 227-36224-01 −
0.50 µm -20 to 260/270 °C − 227-36225-01 −
0.53 mm
1.00 µm -20 to 250/270 °C − 221-75785-30 227-36226-01
1.50 µm -20 to 240/260 °C − 227-36227-01 227-36227-02
3.00 µm -20 to 230/250 °C − 227-36228-01 227-36228-02
* Maximum temperatures listed are for shorter length columns. Longer columns may have a different maximum temperature.
Analysis of Ethylene Glycol and Diethylene Glycol in Propylene Glycol

Conditions
Instrument : GC-2010 Plus AF/AOC-20i
Column : SH-1701, 30 m, 0.32 mm ID, 1.00 μm
(P/N: 221-75782-30)
Sample : 50 mg each in methanol
Inj. Vol : 1 μL split (split ratio 20:1)
Inj. Temp : 220 °C
Carrier Gas : He, 38 cm/sec
Oven Temp : 100 °C to 220 °C at 7.5 °C/min (hold 4 min)
Detector
: FID, 250 °C

Pg C-22
