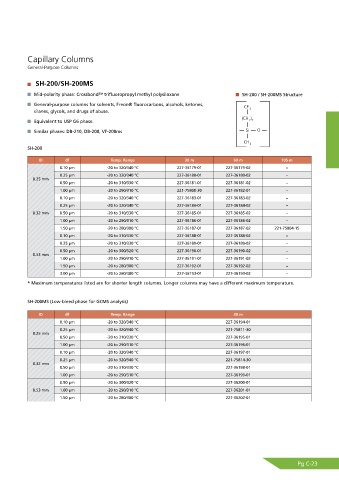

Page 173 - Shimadu Consumables Catalog

Capillary Columns
General-Purpose Columns

SH-200/SH-200MS

Mid-polarity phase: Crossbond™ trifluoropropyl methyl polysiloxane SH-200 / SH-200MS Structure
General-purpose columns for solvents, Freon® fluorocarbons, alcohols, ketones, $'
silanes, glycols, and drugs of abuse.
$)
Equivalent to USP G6 phase.
Similar phases: DB-210, DB-200, VF-200ms 4J 0

$)
SH-200

ID df Temp. Range 30 m 60 m 105 m
0.10 µm -20 to 320/340 °C 227-36179-01 227-36179-02 −
0.25 µm -20 to 320/340 °C 227-36180-01 227-36180-02 −
0.25 mm
0.50 µm -20 to 310/330 °C 227-36181-01 227-36181-02 −
1.00 µm -20 to 290/310 °C 221-75800-30 227-36182-01 −
0.10 µm -20 to 320/340 °C 227-36183-01 227-36183-02 −
0.25 µm -20 to 320/340 °C 227-36184-01 227-36184-02 −
0.32 mm 0.50 µm -20 to 310/330 °C 227-36185-01 227-36185-02 −
1.00 µm -20 to 290/310 °C 227-36186-01 227-36186-02 −
1.50 µm -20 to 280/300 °C 227-36187-01 227-36187-02 221-75804-15
0.10 µm -20 to 310/330 °C 227-36188-01 227-36188-02 −
0.25 µm -20 to 310/330 °C 227-36189-01 227-36189-02 −
0.50 µm -20 to 300/320 °C 227-36190-01 227-36190-02 −
0.53 mm
1.00 µm -20 to 290/310 °C 227-36191-01 227-36191-02 −
1.50 µm -20 to 280/300 °C 227-36192-01 227-36192-02 −
3.00 µm -20 to 260/380 °C 227-36193-01 227-36193-02 −
* Maximum temperatures listed are for shorter length columns. Longer columns may have a different maximum temperature.

SH-200MS (Low-bleed phase for GCMS analysis)
ID df Temp. Range 30 m
0.10 µm -20 to 320/340 °C 227-36194-01
0.25 µm -20 to 320/340 °C 221-75811-30
0.25 mm
0.50 µm -20 to 310/330 °C 227-36195-01
1.00 µm -20 to 290/310 °C 227-36196-01
0.10 µm -20 to 320/340 °C 227-36197-01
0.25 µm -20 to 320/340 °C 221-75814-30
0.32 mm
0.50 µm -20 to 310/330 °C 227-36198-01
1.00 µm -20 to 290/310 °C 227-36199-01
0.50 µm -20 to 300/320 °C 227-36200-01
0.53 mm 1.00 µm -20 to 290/310 °C 227-36201-01
1.50 µm -20 to 280/300 °C 227-36202-01

Pg C-23
