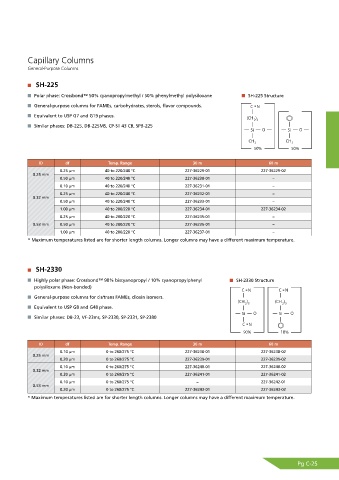

Page 175 - Shimadu Consumables Catalog

Capillary Columns
General-Purpose Columns

SH-225
Polar phase: Crossbond™ 50% cyanopropylmethyl / 50% phenylmethyl polysiloxane SH-225 Structure

General-purpose columns for FAMEs, carbohydrates, sterols, flavor compounds. $ /
Equivalent to USP G7 and G19 phases.
$)

Similar phases: DB-225, DB-225MS, CP-Sil 43 CB, SPB-225
4J 0 4J 0
$) $)

ID df Temp. Range 30 m 60 m
0.25 µm 40 to 220/240 °C 227-36229-01 227-36229-02
0.25 mm
0.50 µm 40 to 220/240 °C 227-36230-01 −
0.10 µm 40 to 220/240 °C 227-36231-01 −
0.25 µm 40 to 220/240 °C 227-36232-01 −
0.32 mm
0.50 µm 40 to 220/240 °C 227-36233-01 −
1.00 µm 40 to 200/220 °C 227-36234-01 227-36234-02
0.25 µm 40 to 200/220 °C 227-36235-01 −
0.53 mm 0.50 µm 40 to 200/220 °C 227-36236-01 −
1.00 µm 40 to 200/220 °C 227-36237-01 −
* Maximum temperatures listed are for shorter length columns. Longer columns may have a different maximum temperature.

SH-2330

Highly polar phase: Crossbond™ 90% biscyanopropyl / 10% cyanopropylphenyl SH-2330 Structure
polysiloxane (Non-bonded)
$ / $ /
General-purpose columns for cis/trans FAMEs, dioxin isomers.
$) $)

Equivalent to USP G8 and G48 phase.
4J 0 4J 0
Similar phases: DB-23, VF-23ms, SP-2330, SP-2331, SP-2380
$ /

ID df Temp. Range 30 m 60 m
0.10 µm 0 to 260/275 °C 227-36238-01 227-36238-02
0.25 mm
0.20 µm 0 to 260/275 °C 227-36239-01 227-36239-02
0.10 µm 0 to 260/275 °C 227-36240-01 227-36240-02
0.32 mm
0.20 µm 0 to 260/275 °C 227-36241-01 227-36241-02
0.10 µm 0 to 260/275 °C − 227-36242-01
0.53 mm
0.20 µm 0 to 260/275 °C 227-36243-01 227-36243-02
* Maximum temperatures listed are for shorter length columns. Longer columns may have a different maximum temperature.

Pg C-25
