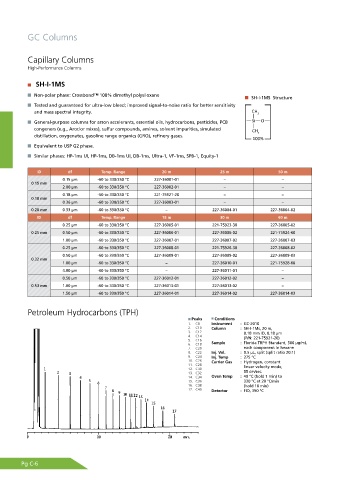

Page 156 - Shimadu Consumables Catalog

GC Columns

Capillary Columns
High-Performance Columns

SH-I-1MS
Non-polar phase: Crossbond™ 100% dimethyl polysiloxane
SH-I-1MS Structure
Tested and guaranteed for ultra-low bleed; improved signal-to-noise ratio for better sensitivity
and mass spectral integrity.
General-purpose columns for arson accelerants, essential oils, hydrocarbons, pesticides, PCB
congeners (e.g., Aroclor mixes), sulfur compounds, amines, solvent impurities, simulated
distillation, oxygenates, gasoline range organics (GRO), refinery gases.
Equivalent to USP G2 phase.

Similar phases: HP-1ms UI, HP-1ms, DB-1ms UI, DB-1ms, Ultra-1, VF-1ms, SPB-1, Equity-1

ID df Temp. Range 20 m 25 m 50 m
0.15 µm -60 to 330/350 °C 227-36001-01 − −
0.15 mm
2.00 µm -60 to 330/350 °C 227-36002-01 − −
0.18 µm -60 to 330/350 °C 221-75921-20 − −
0.18 mm
0.36 µm -60 to 330/350 °C 227-36003-01 − −
0.20 mm 0.33 µm -60 to 330/350 °C − 227-36004-01 227-36004-02
ID df Temp. Range 15 m 30 m 60 m
0.25 µm -60 to 330/350 °C 227-36005-01 221-75923-30 227-36005-02
0.25 mm 0.50 µm -60 to 330/350 °C 227-36006-01 227-36006-02 221-75924-60
1.00 µm -60 to 330/350 °C 227-36007-01 227-36007-02 227-36007-03
0.25 µm -60 to 330/350 °C 227-36008-01 221-75926-30 227-36008-02
0.50 µm -60 to 330/350 °C 227-36009-01 227-36009-02 227-36009-03
0.32 mm
1.00 µm -60 to 330/350 °C − 227-36010-01 221-75928-60
4.00 µm -60 to 330/350 °C − 227-36011-01 −
0.50 µm -60 to 330/350 °C 227-36012-01 227-36012-02 −
0.53 mm 1.00 µm -60 to 330/350 °C 227-36013-01 227-36013-02 −
1.50 µm -60 to 330/350 °C 227-36014-01 227-36014-02 227-36014-03

Petroleum Hydrocarbons (TPH)
Peaks Conditions
1. C8 Instrument : GC-2010
2. C10 Column : SH-I-1Ms, 20 m,
3. C12 0.18 mm ID, 0.18 μm
4. C14 (P/N: 221-75921-20)
5. C16
6. C18 Sample : Florida TRPH Standard, 500 μg/mL
7. C20 each component in hexane
8. C22 Inj. Vol. : 0.5 μL, split (split ratio 20:1)
9. C24 Inj. Temp : 275 °C
10. C26 Carrier Gas : Hydrogen, constant
11. C28 linear velocity mode,
12. C30
13. C32 55 cm/sec.
14. C34 Oven Temp : 40 °C (hold 1 min) to
15. C36 330 °C at 20 °C/min
16. C38 (hold 10 min)
17. C40 Detector : FID, 350 °C

Pg C-6
