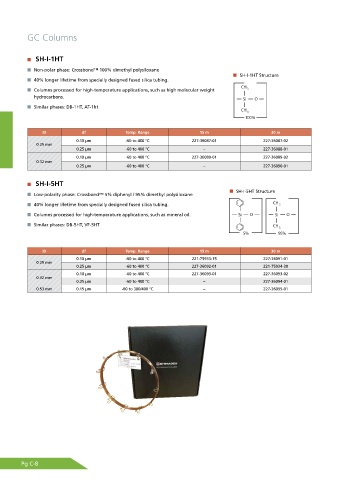

Page 158 - Shimadu Consumables Catalog

GC Columns

SH-I-1HT

Non-polar phase: Crossbond™ 100% dimethyl polysiloxane
SH-I-1HT Structure
40% longer lifetime from specially designed fused silica tubing.
$)
Columns processed for high-temperature applications, such as high molecular weight
hydrocarbons. 4J 0
Similar phases: DB-1HT, AT-1ht
$)

ID df Temp. Range 15 m 30 m
0.10 µm -60 to 400 °C 227-36087-01 227-36087-02
0.25 mm
0.25 µm -60 to 400 °C − 227-36088-01
0.10 µm -60 to 400 °C 227-36089-01 227-36089-02
0.32 mm
0.25 µm -60 to 400 °C − 227-36090-01

SH-I-5HT
SH-I-5HT Structure
Low-polarity phase: Crossbond™ 5% diphenyl / 95% dimethyl polysiloxane
40% longer lifetime from specially designed fused silica tubing. $)
Columns processed for high-temperature applications, such as mineral oil. 4J 0 4J 0

Similar phases: DB-5HT, VF-5HT $)

ID df Temp. Range 15 m 30 m
0.10 µm -60 to 400 °C 221-75933-15 227-36091-01
0.25 mm
0.25 µm -60 to 400 °C 227-36092-01 221-75934-30
0.10 µm -60 to 400 °C 227-36093-01 227-36093-02
0.32 mm
0.25 µm -60 to 400 °C − 227-36094-01
0.53 mm 0.15 µm -60 to 380/400 °C − 227-36095-01

Pg C-8
