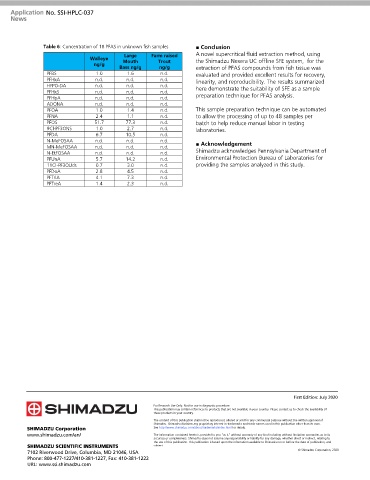

Page 56 - Application Notebook - PFAS Analysis
P. 56

No. SSI-HPLC-037



               Table 6: Concentration of 18 PFAS in unknown fish samples   ■ Conclusion

                                          Large    Farm raised    A novel supercritical fluid extraction method, using
                               Walleye    Mouth      Trout        the Shimadzu Nexera UC offline SFE system,  for the
                                ng/g
                                         Bass ng/g    ng/g        extraction of PFAS compounds from fish tissue was
                 PFBS            1.0       1.6        n.d.        evaluated and provided excellent results for recovery,
                 PFHxA           n.d.      n.d.       n.d.        linearity, and reproducibility. The results summarized
                 HFPO-DA         n.d.      n.d.       n.d.        here demonstrate the suitability of SFE as a sample
                 PFHxS           n.d.      n.d.       n.d.        preparation technique for PFAS analysis.
                 PFHpA           n.d.      n.d.       n.d.
                 ADONA           n.d.      n.d.       n.d.
                 PFOA            1.0       1.4        n.d.        This sample preparation technique can be automated
                 PFNA            2.4       1.1        n.d.        to allow the processing of up to 48 samples per
                 PFOS           51.7       77.3       n.d.        batch to help reduce manual labor in testing
                 9Cl-PF3ONS      1.0       2.7        n.d.        laboratories.
                 PFDA            6.7       10.5       n.d.
                 N-MeFOSAA       n.d.      n.d.       n.d.        ■ Acknowledgement
                 MN-MeFOSAA      n.d.      n.d.       n.d.        Shimadzu acknowledges Pennsylvania Department of
                 N-EtFOSAA       n.d.      n.d.       n.d.
                 PFUnA           5.7       14.2       n.d.        Environmental Protection Bureau of Laboratories for
                 11Cl-PF3OUds    0.7       3.0        n.d.        providing the samples analyzed in this study.
                 PFDoA           2.8       4.5        n.d.
                 PFTriA          4.1       7.3        n.d.
                 PFTreA          1.4       2.3        n.d.
