Evaluation of Raw Materials
Additives
LCMS-IT-TOF

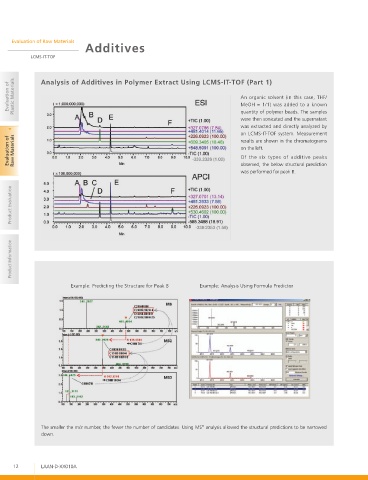

Evaluation of Plastic Materials Analysis of Additives in Polymer Extract Using LCMS-IT-TOF (Part 1)
An organic solvent (in this case, THF/
MeOH = 1/1) was added to a known
quantity of polymer beads. The samples
were then sonicated and the supernatant
was extracted and directly analyzed by
an LCMS-IT-TOF system. Measurement
Evaluation of Raw Materials on the left.
results are shown in the chromatograms
Of the six types of additive peaks
observed, the below structural prediction
was performed for peak B.
Product Evaluation
Product Information
Example: Predicting the Structure for Peak B Example: Analysis Using Formula Predictor
n
The smaller the m/z number, the fewer the number of candidates. Using MS analysis allowed the structural predictions to be narrowed
down.
