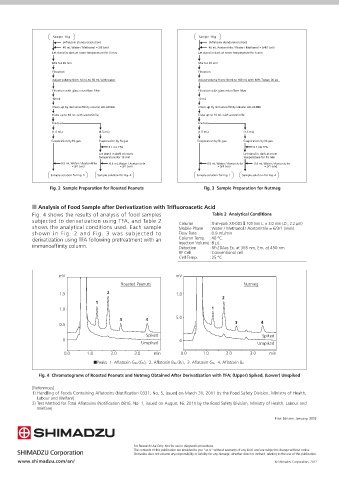

P. 57

Sample  10 g                                       Sample  10 g
                       (Aflatoxin standard solution)                      (Aflatoxin standard solution)
                       40 mL Water / Methanol = 2/8 (v/v)                 40 mL Acetonitrile / Water / Methanol = 6/4/1 (v/v)
                   Let stand in dark at room temperature for 5 min     Let stand in dark at room temperature for 5 min

                   Mix for 30 min                                      Mix for 30 min
                   Filtration                                          Filtration
                   Adjust volume from 10 mL to 50 mL with water        Adjust volume from 10 mL to 100 mL with 10% Tween 20 aq.

                   Filtration with glass microfiber filter             Filtration with glass microfiber filter
                   10 mL                                               10 mL
                   Clean-up by immunoaffinity column AFLAKING          Clean-up by immunoaffinity column AFLAKING
                   Elute up to 10 mL with acetonitrile                 Elute up to 10 mL with acetonitrile
                   Fraction                                            Fraction
                   (1.5 mL)         (1.5 mL)                           (1.5 mL)        (1.5 mL)
                   Evaporation by N2 gas  Evaporation by N2 gas       Evaporation by N2 gas  Evaporation by N2 gas
                                       0.1 mL TFA                                         0.1 mL TFA
                                    Let stand in dark at room                          Let stand in dark at room
                                    temperature for 15 min                             temperature for 15 min
                       0.5 mL Water / Acetonitrile  0.4 mL Water / Acetonitrile  0.5 mL Water / Acetonitrile  0.4 mL Water / Acetonitrile
                          = 9/1 (v/v)      = 9/1 (v/v)                       = 9/1 (v/v)      = 9/1 (v/v)
                   Sample solution for Fig. 1  Sample solution for Fig. 4  Sample solution for Fig. 1  Sample solution for Fig. 4

                   Fig. 2  Sample Preparation for Roasted Peanuts        Fig. 3  Sample Preparation for Nutmeg


            n Analysis of Food Sample after Derivatization with Trifluoroacetic Acid
            Fig. 4 shows the results of analysis of food samples            Table 2  Analytical Conditions
            subjected to derivatization using TFA, and Table 2   Column    : Shim-pack XR-ODSⅡ100 mm L. × 3.0 mm I.D., 2.2 μm)
            shows the analytical conditions used. Each sample   Mobile Phase  : Water / Methanol / Acetonitrile = 6/3/1 (v/v/v)
            shown in Fig.  2 and Fig.  3 was subjected to       Flow Rate  : 0.9 mL/min
            derivatization using TFA following pretreatment with an   Column Temp. : 40 °C
            immunoaffinity column.                              Injection Volume: 8 μL
                                                                Detection
                                                                           : RF-20Axs Ex. at 365 nm, Em. at 450 nm
                                                                RF Cell    : Conventional cell
                                                                Cell Temp.  : 25 °C

                      mV                                       mV
                                           Roasted Peanuts                             Nutmeg
                      1.5              2                       1.0
                                                                               2
                                   1
                      1.0                                                  1
                                                               5.0
                                           3        4
                      0.5                                                           3        4
                                                    Spiked                                   Spiked
                       0                                        0
                                                   Unspiked                                Unspiked
                        0.0     1.0     2.0     3.0    min       0.0    1.0     2.0      3.0    min
                                  ■Peaks  1. Aflatoxin G2a (G1),  2. Aflatoxin B2a (B1),  3. Aflatoxin G2,  4. Aflatoxin B2

               Fig. 4  Chromatograms of Roasted Peanuts and Nutmeg Obtained After Derivatization with TFA; (Upper) Spiked, (Lower) Unspiked
            [References]
            1) Handling of Foods Containing Aflatoxins (Notification 0331, No. 5, issued on March 31, 2011 by the Food Safety Division, Ministry of Health,
              Labour and Welfare)
            2) Test Method for Total Aflatoxins (Notification 0816, No. 1, issued on August 16, 2011 by the Food Safety Division, Ministry of Health, Labour and
              Welfare)
