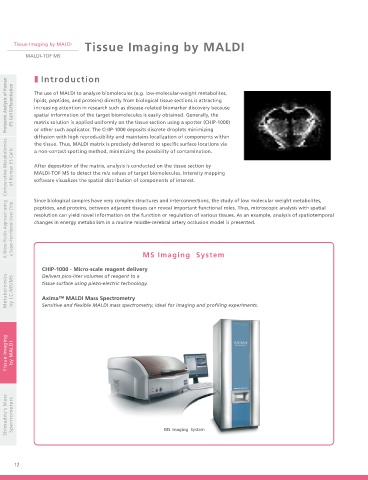

Page 12 - LifeScience Solutions for Stem Cell Analysis
P. 12

Tissue Imaging by MALDI
      Tissue Imaging by MALDI
         MALDI-TOF MS



            ˙  Introduction
   Proteomic Analysis of Human  iPS Cell Differentiation  The use of MALDI to analyze biomolecules (e.g. low-molecular-weight metabolites,

            lipids, peptides, and proteins) directly from biological tissue sections is attracting
            increasing attention in research such as disease-related biomarker discovery because
            spatial information of the target biomolecules is easily obtained. Generally, the
            matrix solution is applied uniformly on the tissue section using a spotter (CHIP-1000)
            or other such applicator. The CHIP-1000 deposits discrete droplets minimizing
            diffusion with high reproducibility and maintains localization of components within
   Comparative Metabolomics  of Human ES Cells  After deposition of the matrix, analysis is conducted on the tissue section by
            the tissue. Thus, MALDI matrix is precisely delivered to specific surface locations via
            a non-contact spotting method, minimizing the possibility of contamination.


            MALDI-TOF MS to detect the m/z values of target biomolecules. Intensity mapping
            software visualizes the spatial distribution of components of interest.


   A Micro-fluidic Approach using a Super-functional Liver Chip  Since biological samples have very complex structures and interconnections, the study of low molecular weight metabolites,
            peptides, and proteins, between adjacent tissues can reveal important functional roles. Thus, microscopic analysis with spatial
            resolution can yield novel information on the function or regulation of various tissues. As an example, analysis of spatiotemporal
            changes in energy metabolism in a murine middle-cerebral artery occlusion model is presented.




                                                MS Imaging  System

               CHIP-1000 - Micro-scale reagent delivery
               Delivers pico-liter volumes of reagent to a
   Metabolomics  by LC-MS/MS  tissue surface using piezo-electric technology.

               Axima™ MALDI Mass Spectrometry
               Sensitive and flexible MALDI mass spectrometry, ideal for imaging and profiling experiments.




   Tissue Imaging  by MALDI











   Shimadzu’s Mass  Spectrometers                      MS Imaging  System
