Page 7 - Shimadzu SMV-301/301RT

PC Software Improves Testing Ef ciency Rubber Viscoelasticity Evaluation from Mooney Viscosity to

Stress Relaxation

The SMV-301/301RT models make it possible to set test conditions, display data in real time, and
acquire, save, analyze, or statistically process data using computer software. Furthermore, up to
four SMV-301/SMV-301RT Mooney viscometers can be controlled from one PC for more ef cient Operating Principle and Mooney Viscosity
testing.*

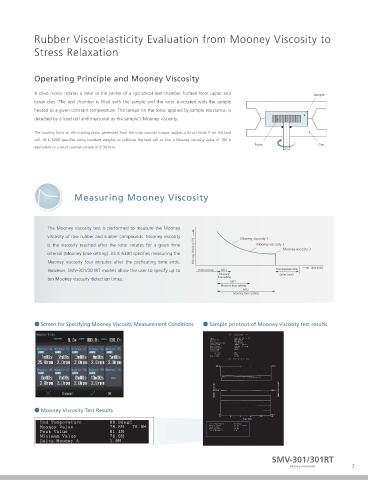

A drive motor rotates a rotor in the center of a cylindrical test chamber formed from upper and Sample
* Multiple units cannot be controlled in combination with an SMV-300 model.
lower dies. The test chamber is lled with the sample and the rotor is rotated with the sample
heated to a given constant temperature. The torque on the rotor, applied by sample resistance, is
detected by a load cell and measured as the sample's Mooney viscosity.
Smooth Process from Creating Test Conditions to Statistical Processing of Test Results
The rotating force on the rotating plate, generated from the rotor counter torque, applies a thrust force, P, on the load
＜Main Speci cations＞ cell. JIS K 6300 speci es using standard weights to calibrate the load cell so that a Mooney viscosity value of 100 is
・Display real-time data during tests. equivalent to a rotor counter torque of 8.30 N-m. Rotor Die
・Display real-time graphs of time vs. Mooney value or time vs. temperature.
・Control up to four Mooney viscometer units connected to the computer.
・Specify test conditions, display results after tests, determine pass/fail results, overlay graphs, and
output data for data analysis.
・Statistical processing, such as calculating average values and standard deviations and plotting graphs
and histograms
・Integrating software for displaying the connection and operating status and ID codes of respective
instrument Measuring Mooney Viscosity
・Change test conditions from the viscometer unit.
・USB 2.0 communication interface with the PC

The Mooney viscosity test is performed to measure the Mooney
viscosity of raw rubber and rubber compounds. Mooney viscosity Mooney viscosity 1
Mooney Viscosity (M) Mooney viscosity 3
is the viscosity reached after the rotor rotates for a given time Mooney viscosity 2
interval (Mooney time setting). JIS K 6300 speci es measuring the
Mooney viscosity four minutes after the preheating time ends.
However, SMV-301/301RT models allow the user to specify up to Preheat time MT1 Decompression time Time (min)
Mooney (after time)
Screen during testing Screen for setting test conditions Up to 4 instruments can be controlled with a single PC ten Mooney viscosity detection times. time setting
MT2
Mooney time setting
MT3
Mooney time setting
Recalculating, Overlaying, or Statistically Processing
Test Results Is Easy
● Screen for Specifying Mooney Viscosity Measurement Conditions ● Sample printout of Mooney viscosity test results
When the viscometer connects to the software, it waits in standby mode using the previous test
conditions settings, which means tests can be performed consecutively without having to change
test conditions.
Saved test results and data can be displayed or control charts created from the data, such as graphs
or histograms.
Control chart and histograms

Varied Rotor Speed in Cycle Tests for Mooney Viscosity A: Mooney test
B: Stress relaxation measurement
and Stress Relaxation (SMV-301RT)

Multiple cycles of combined Mooney viscosity test and stress relaxation measurements can be Mooney viscosity ● Mooney Viscosity Test Results
speci ed (total measurement time: max. 30 minutes).

A B A B A B
Preheating time After time
SMV-301/301RT
6 Mooney Viscometer 7
