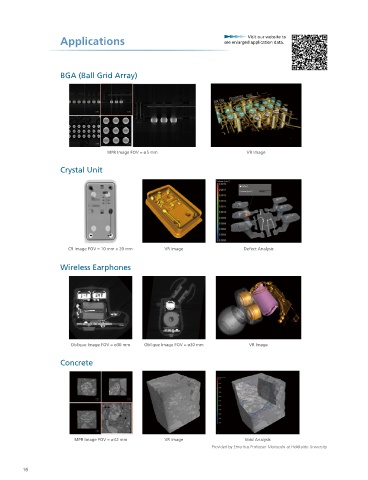

Applications see enlarged application data.
Visit our website to
BGA (Ball Grid Array)
MPR Image FOV = ø5 mm VR Image
Crystal Unit
CR Image FOV = 10 mm × 20 mm VR Image Defect Analysis
Wireless Earphones
Oblique Image FOV = ø30 mm Oblique Image FOV = ø30 mm VR Image
Concrete
MPR Image FOV = ø42 mm VR Image Void Analysis
Provided by Emeritus Professor Moriyoshi at Hokkaido University
16
