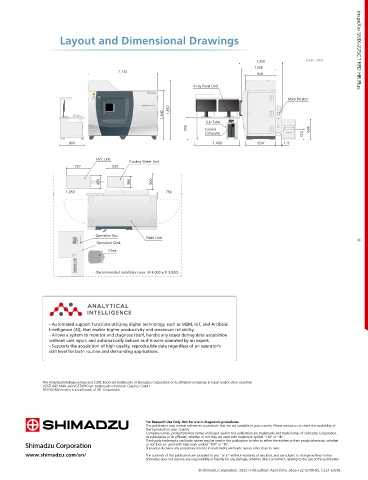

Layout and Dimensional Drawings

1,350 (unit: mm) inspeXio SMX-225CT FPD HR Plus
1,058
2,170
958
X-ray Panel Unit

Main Breaker
1,857
1,540
Sub Table
700 Control 636
Computer 324
800 1,400 934 171

HVC Unit
Cooling Water Unit
727 530

420 360 500
1,050 750

Operation Box
Main Unit
Operation Desk
Chair

(Recommended installation area: W 4,000 × D 3,000)

- Automated support functions utilizing digital technology, such as M2M, IoT, and Arti cial
Intelligence (AI), that enable higher productivity and maximum reliability.
- Allows a system to monitor and diagnose itself, handle any issues during data acquisition
without user input, and automatically behave as if it were operated by an expert.
- Supports the acquisition of high quality, reproducible data regardless of an operator’s
skill level for both routine and demanding applications.
