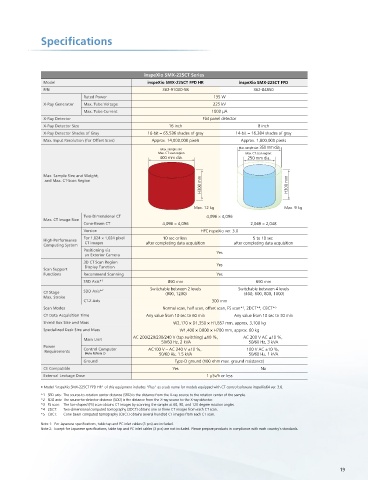

Specifications

inspeXio SMX-225CT Series
Model inspeXio SMX-225CT FPD HR inspeXio SMX-225CT FPD
P/N 362-91000-58 362-84850
Rated Power 135 W
X-Ray Generator Max. Tube Voltage 225 kV
Max. Tube Current 1000 µA
X-Ray Detector Flat panel detector
X-Ray Detector Size 16 inch 8 inch
X-Ray Detector Shades of Gray 16-bit = 65,536 shades of gray 14-bit = 16,384 shades of gray
Max. Input Resolution (for Offset Scan) Approx. 14,000,000 pixels Approx. 1,800,000 pixels
Max. sample size: 350 mm dia.
Max. sample size
Max. CT scan region Max. CT scan region:
400 mm dia. 250 mm dia.

Max. Sample Size and Weight,
H300 mm H300 mm
and Max. CT-Scan Region

Max. 12 kg Max. 9 kg
Two-Dimensional CT 4,096 × 4,096
Max. CT Image Size
Cone-Beam CT 4,096 × 4,096 2,048 × 2,048
Version HPCinspeXio ver. 3.0
High-Performance For 1,024 × 1,024 pixel 10 sec or less 5 to 10 sec
Computing System CT images after completing data acquisition after completing data acquisition
Positioning via Yes
an Exterior Camera
3D CT Scan Region Yes
Scan Support Display Function
Functions Recommend Scanning Yes
SRD Axis* 1 890 mm 690 mm
CT Stage SDD Axis* 2 Switchable between 2 levels Switchable between 4 levels
(400, 600, 800, 1000)
(800, 1200)
Max. Stroke
CT-Z Axis 300 mm
Scan Modes Normal scan, half scan, offset scan, FS scan* , 2DCT* , CBCT* 5
4
3
CT Data Acquisition Time Any value from 10 sec to 60 min Any value from 10 sec to 30 min
Shield Box Size and Mass W2,170 × D1,350 × H1,857 mm, approx. 3,100 kg
Specialized Desk Size and Mass W1,400 × D800 × H700 mm, approx. 60 kg
Main Unit AC 200/220/230/240 V (tap switching) ±10 %, AC 200 V AC ±10 %,
50/60 Hz, 2 kVA 50/60 Hz, 3 kVA
Power Control Computer
Requirements AC100 V – AC 240 V ±10 %, 100 V AC ±10 %,
(Note 1)(Note 2) 50/60 Hz, 1.5 kVA 50/60 Hz, 1 kVA
Ground Type-D ground (100 ohm max. ground resistance)
CE Compatible Yes No
External Leakage Dose 1 µSv/h or less
• Model “inspeXio SMX-225CT FPD HR” of this equipment includes “Plus” as a sub name for models equipped with CT control software inspeXio64 ver. 3.0.
*1 SRD axis: The source-to-rotation center distance (SRD) is the distance from the X-ray source to the rotation center of the sample.
*2 SDD axis: The source-to-detector distance (SDD) is the distance from the X-ray source to the X-ray detector.
*3 FS scan: The fan-shaped (FS) scan obtains CT images by scanning the sample at 60, 90, and 120 degree rotation angles.
*4 2DCT: Two-dimensional computed tomography (2DCT) obtains one or three CT images from each CT scan.
*5 CBCT: Cone beam computed tomography (CBCT) obtains several hundred CT images from each CT scan.
Note 1: For Japanese specifications, table tap and PC inlet cables (3 pcs) are included.
Note 2: Except for Japanese specifications, table tap and PC inlet cables (3 pcs) are not included. Please prepare products in compliance with each country's standards.
