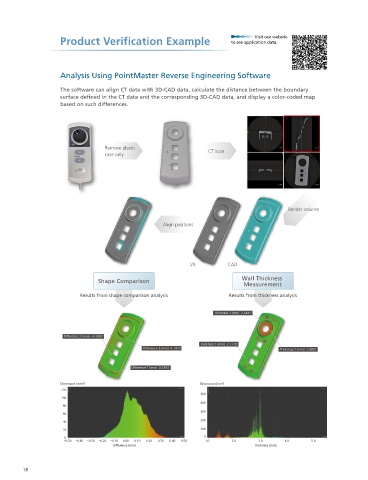

Product Verification Example to see application data.
Analysis Using PointMaster Reverse Engineering Software
The software can align CT data with 3D-CAD data, calculate the distance between the boundary
surface de ned in the CT data and the corresponding 3D-CAD data, and display a color-coded map
based on such differences.
Remove plastic CT scan
case only
Render volume
Align positions
VR CAD
Shape Comparison Wall Thickness
Measurement
Results from shape comparison analysis Results from thickness analysis
Thickness 3 (mm) 2.5441
Difference 2 (mm) −0.0081
Thickness 1 (mm) 2.7779
Difference 3 (mm) 0.1423 Thickness 2 (mm) 1.6991
Difference 1 (mm) 0.3393
Dimension (mm 2 ) Dimension (mm 2 )
120
500
100
400
80
300
60
200
40
20 100
0 0
−0.50 −0.40 −0.30 −0.20 −0.10 0.00 0.10 0.20 0.30 0.40 0.50 1.0 2.0 3.0 4.0 5.0
Difference (mm) Thickness (mm)
