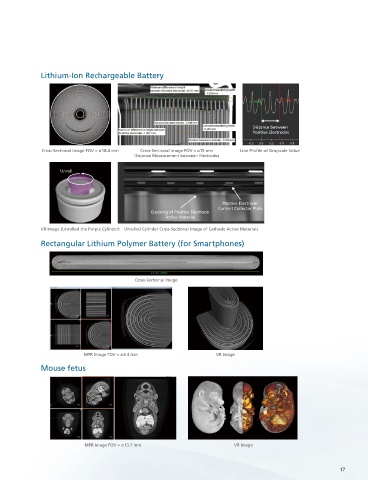

Page 17 - Shimadzu inspeXioSMX-225CT FPD HRPlus

Lithium-Ion Rechargeable Battery

Distance between
Distance between
Positive Electrodes
Positive Electrodes
Cross-Sectional Image FOV = ø18.4 mm Cross-Sectional Image FOV = ø15 mm Line Pro le of Grayscale Value
Distance Measurement between Electrodes

Unroll

Positive Electrode
Current Collector Plate
Cracking of Positive Electrode
Active Material
VR Image (Unrolled the Purple Cylinder) Unrolled Cylinder Cross-Sectional Image of Cathode Active Materials
Rectangular Lithium Polymer Battery (for Smartphones)

Cross-Sectional Image

MPR Image FOV = ø4.4 mm VR Image
Mouse fetus

MPR Image FOV = ø13.7 mm VR Image

17
