A Wealth of Functions for

Facilitating Inspections

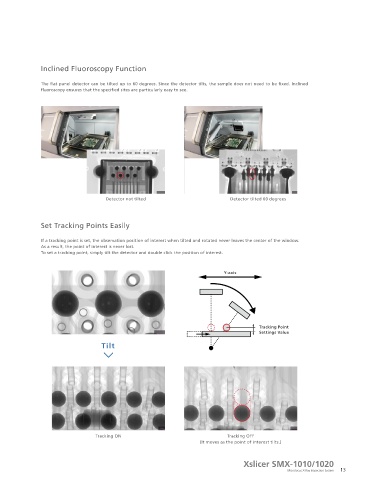

Teaching Function Inclined Fluoroscopy Function

Fluoroscopic and CT imaging can be automated using the Teaching Function, which moves the sample stage to preregistered The flat panel detector can be tilted up to 60 degrees. Since the detector tilts, the sample does not need to be fixed. Inclined
points of interest. fluoroscopy ensures that the specified sites are particularly easy to see.
Additionally, for visual inspection, OK and NG judgment functions are included.

Detector not tilted Detector tilted 60 degrees
Shortened Source-Detector Distance (SDD) Function

Set Tracking Points Easily
The distance from the X-ray generator to the X-ray detector (SDD) can be switched to 185 mm (The standard distance is 370 mm)
By shortening the SDD, images with sufficient penetration can be obtained even for samples that are hard to penetrate.
If a tracking point is set, the observation position of interest when tilted and rotated never leaves the center of the window.
As a result, the point of interest is never lost.
Flat panel detector To set a tracking point, simply tilt the detector and double click the position of interest.

Flat panel detector Y-axis

Standard SDD

Short SDD

Tracking Point
Settings Value

Tilt
X-ray generator X-ray generator

Tracking ON Tracking OFF
(It moves as the point of interest tilts.)
SDD:370mm SDD:185mm

Xslicer SMX-1010/1020
12 Microfocus X-Ray Inspection System 13
