C251-E039A

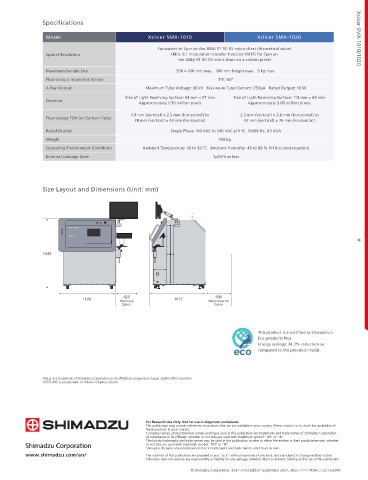

Specifications

Model Xslicer SMX-1010 Xslicer SMX-1020 Xslicer SMX-1010/1020

Equivalent to 5 m on the JIMA RT RC-05 micro chart (theoretical value)
Spatial Resolution (Min. 0.1 modulation transfer function (MTF) for 7 m on
the JIMA RT RC-05 micro chart on a carbon plate)
Maximum Sample Size 350 × 450 mm max. 100 mm height max. 5 kg max.
Fluoroscopic Inspection Stroke Tilt: 60° Microfocus X-Ray Inspection System
X-Ray Output Maximum Tube Voltage: 90 kV Maximum Tube Current: 250 A Rated Output: 10 W
Size of Light Receiving Surface: 64 mm × 57 mm Size of Light Receiving Surface: 114 mm × 64 mm Xslicer SMX-1010/1020
Detector Approximately 1.50 million pixels Approximately 3.00 million pixels
1.9 mm (vertical) × 2.2 mm (horizontal) to 2.2 mm (vertical) × 3.8 mm (horizontal) to
Fluoroscopy FOV (on Carbon Plate)
38 mm (vertical) × 43 mm (horizontal) 42 mm (vertical) × 76 mm (horizontal)
Rated Output Single Phase 100 VAC to 240 VAC ±10 % 50/60 Hz, 0.5 kVA
Weight 700 kg
Operating Environment Conditions Ambient Temperature: 10 to 30 °C Ambient Humidity: 40 to 80 % RH (no condensation)
External Leakage Dose 1 SV/h or less

Size Layout and Dimensions (Unit: mm)

1345

425 500
1100 Working 1075 Maintenance
Space Space

This product is a certified as Shimadzu's
Eco-products Plus.
Energy savings: 34.3% reduction as
compared to the previous model.
