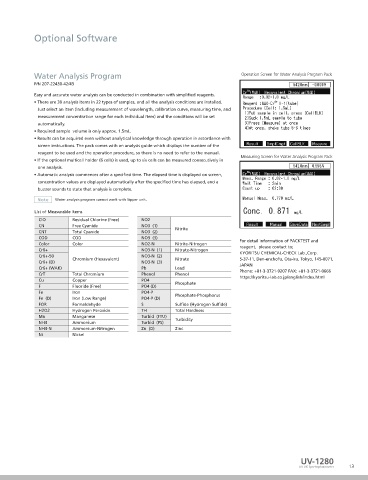

Page 13 - Shimadzu UV-1280

Multi-Sample Measurements Optional Software

Measurements Using Multiple Cells Water Analysis Program Operation Screen for Water Analysis Program Pack
P/N 207-22430-42/43
When measuring multiple samples under the same
Easy and accurate water analysis can be conducted in combination with simplified reagents.
conditions, it is convenient to use the four-cell sample
• There are 39 analysis items in 22 types of samples, and all the analysis conditions are installed.
compartment unit and the six-cell sample compartment,
Just select an item (including measurement of wavelength, calibration curve, measuring time, and
which are capable of automatically measuring multiple
measurement concentration range for each individual item) and the conditions will be set
positioned cells. A 4-cell-type universal rectangular cell automatically.
holder is also available to accommodate long-path • Required sample volume is only approx. 1.5mL.
rectangular cells. • Results can be acquired even without analytical knowledge through operation in accordance with
screen instructions. The pack comes with an analysis guide which displays the number of the
Accessories: various cells, four-cell sample compartment unit,
six-cell sample compartment, and the 4-cell-type universal reagent to be used and the operation procedure, so there is no need to refer to the manual. Measuring Screen for Water Analysis Program Pack
rectangular cell holder Six-Cell Sample Compartment • If the optional multicell holder (6 cells) is used, up to six cells can be measured consecutively in
one analysis.
• Automatic analysis commences after a specified time. The elapsed time is displayed on screen,
concentration values are displayed automatically after the specified time has elapsed, and a
buzzer sounds to state that analysis is complete.
Multi-Sample Measurements without Cells Note Water analysis program cannot work with Sipper unit.
List of Measurable Items
Using a sipper allows measurements without transferring
ClO Residual Chlorine (Free) NO2
samples to cells. Both a peristaltic pump type sipper unit and CN Free Cyanide NO3 (1)
a syringe sipper with a syringe pump system are available. CNT Total Cyanide NO3 (2) Nitrite
COD COD NO3 (3)
With the sipper unit 160C and the syringe sipper model CN, For detail information of PACKTEST and
Color Color NO2-N Nitrite-Nitrogen
the temperature can be controlled via a circular flow of Cr6+ NO3-N (1) Nitrate-Nitrogen reagent, please contact to;
water at a constant temperature. Combining the instrument Cr6+-50 Chromium (Hexavalent) NO3-N (2) Nitrate KYORITSU CHEMICAL-CHECK Lab.,Corp.
5-37-11, Den-enchofu, Ota-ku, Tokyo, 145-0071,
with an auto sample allows automatic measurements from Cr6+ (D) NO3-N (3) JAPAN
Cr6+ (WAK) Pb Lead
up to 100 test tubes. A test tube holder (available by special Phone: +81-3-3721-9207 FAX: +81-3-3721-0666
CrT Total Chromium Phenol Phenol
order) allows performing measurements by placing the test Cu Copper PO4 Phosphate https://kyoritsu-lab.co.jp/english/index.html
tubes directly in the sample chamber instead of using cells. F Fluoride (Free) PO4 (D)
Fe Iron PO4-P
The measurements can be performed with the test tube lids Phosphate-Phosphorus
Fe (D) Iron (Low Range) PO4-P (D)
left sealed, which is convenient for measurements of culture FOR Formaldehyde S Sulfide (Hydrogen Sulfide)
fluids. H2O2 Hydrogen Peroxide TH Total Hardness
Mn Manganese Turbid (FTU) Turbidity
NH4 Ammonium Turbid (PS)
Syringe Sipper
Accessories: various sipper units, syringe sipper, auto sample changer, NH4-N Ammonium-Nitrogen Zn (D) Zinc
and test tube holder (cells not required) Ni Nickel

UV-1280
12 UV-VIS Spectrophotometer 13
