Page 17 - Shimadzu UV-1280

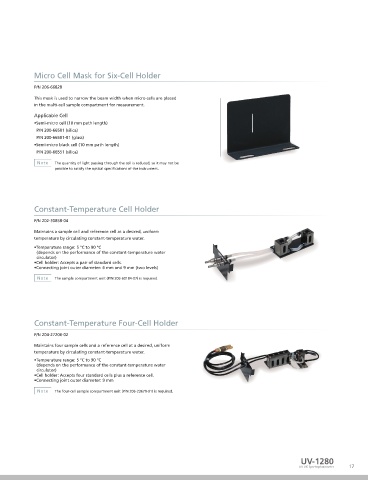

Long-Path Rectangular Cell Holder (For Wide Cells) Micro Cell Mask for Six-Cell Holder

P/N 206-69421 P/N 206-66828
Typically, only long-path rectangular cells up to 50 mm path length can This mask is used to narrow the beam width when micro cells are placed
be used, due to the restriction of beam width. However, this holder, in the multi-cell sample compartment for measurement.
designed while taking beam width into account, allows using cells with Applicable Cell
a longer path length. With special cells, path lengths of 100 mm can be
used. •Semi-micro cell (10 mm path length)
P/N 200-66501 (silica)
Note The sample compartment unit (P/N 206-60184-07) is required. P/N 200-66501-01 (glass)
•Semi-micro black cell (10 mm path length)
Long-Path Rectangular Cell (Wide Type) P/N 200-66551 (silica)
Note The quantity of light passing through the cell is reduced, so it may not be
This is a glass 15 mm wide long-path rectangular cell, which is wider possible to satisfy the optical specifications of the instrument.
than the conventional 10 mm wide cell. A special lid is provided, which
is effective in preventing the sample from spilling out of the cell.

Optical Path Length P/N Special Lid P/N
10mm 200-66599-01 200-66600-01
33mm 200-66599-02 200-66600-02 Constant-Temperature Cell Holder
50mm 200-66599-03 200-66600-03
100mm 200-66599-04 200-66600-04 P/N 202-30858-04
Maintains a sample cell and reference cell at a desired, uniform
temperature by circulating constant-temperature water.
Cylindrical Cell Holder •Temperature range: 5 °C to 90 °C
(depends on the performance of the constant-temperature water
P/N 204-06216-02 circulator)
•Cell holder: Accepts a pair of standard cells.
Holds two cylindrical cells with an optical path length of 10, 20, 50, or •Connecting joint outer diameter: 6 mm and 9 mm (two levels)
100 mm. Note The sample compartment unit (P/N 206-60184-07) is required.

Note The sample compartment unit (P/N 206-60184-07) is required.

Constant-Temperature Four-Cell Holder

P/N 204-27206-02
Maintains four sample cells and a reference cell at a desired, uniform
Super Micro Cell Holder temperature by circulating constant-temperature water.
•Temperature range: 5 °C to 90 °C
P/N 206-14334-01
(depends on the performance of the constant-temperature water
circulator)
Holds super micro cells for measurement of extremely small volume •Cell holder: Accepts four standard cells plus a reference cell.
samples. The cell height is adjustable, and the required sample volume •Connecting joint outer diameter: 9 mm
can be adjusted in the range of 100 to 200 µL, depending on the type
of black cell used. Note The four-cell sample compartment unit (P/N 206-23670-91) is required.
Applicable cells: (7), (7)', and (8) in the list of cells on page XXX.
Mask: Choice of 1.5 (W) × 1 (H) mm or 1.5 (W) × 3 (H) mm
When using a 5-mm super micro black cell, the measurement with 50 µL
sample is available.
Note • The sample compartment unit (P/N 206-60184-07) is required.
• The quantity of light passing through the cell is reduced, so it may not
be possible to satisfy the optical specifications of the instrument.

UV-1280
16 UV-VIS Spectrophotometer 17
