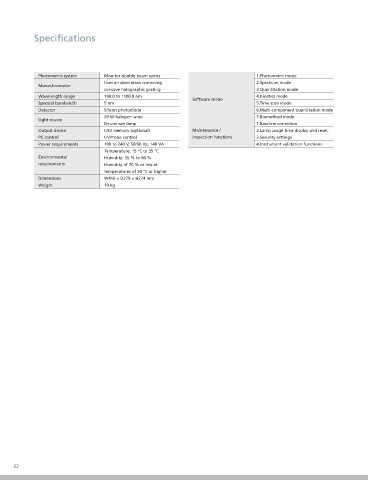

Page 22 - Shimadzu UV-1280

Specifications

Photometric system Monitor double beam optics 1.Photometric mode
Uses an aberration correcting 2.Spectrum mode
Monochromator
concave holographic grating 3.Quantitation mode
Wavelength range 190.0 to 1100.0 nm Software mode 4.Kinetics mode
Spectral bandwidth 5 nm 5.Time scan mode
Detector Silicon photodiode 6.Multi-component quantitation mode
20 W halogen lamp 7.Biomethod mode
Light source
Deuterium lamp 1.Baseline correction
Output device USB memory (optional) Maintenance / 2.Lamp usage time display and reset.
PC control UVProbe control inspection functions 3.Security settings
Power requirements 100 to 240 V, 50/60 Hz, 140 VA 4.Instrument validation functions
Temperature: 15 °C to 35 °C
Environmental Humidity: 30 % to 80 %
requirements Humidity of 70 % or less at
temperatures of 30 °C or higher
Dimensions W416 × D379 × H274 mm
Weight 10 kg

UV-1280
22 UV-VIS Spectrophotometer 23
