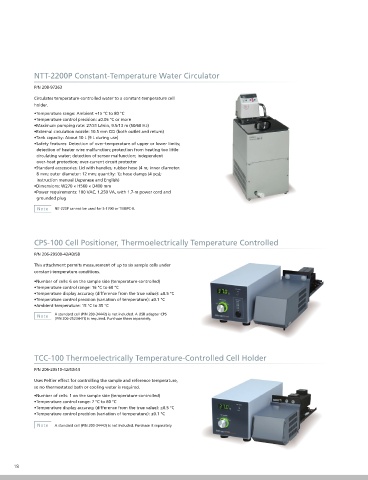

Page 18 - Shimadzu UV-1280

NTT-2200P Constant-Temperature Water Circulator Sipper Unit 160L (Standard Sipper)

P/N 208-97263 P/N 206-23790-51
Circulates temperature-controlled water to a constant-temperature cell Sipper Unit 160T (Triple-Pass Sipper)
holder.
P/N 206-23790-52
•Temperature range: Ambient +15 °C to 80 °C
•Temperature control precision: ±0.05 °C or more Sipper Unit 160C (Constant-Temperature Sipper)
•Maximum pumping rate: 27/31 L/min, 9.5/13 m (50/60 Hz)
•External circulation nozzle: 10.5 mm OD (both outlet and return) P/N 206-23790-53
•Tank capacity: About 10 L (9 L during use) Sipper Unit 160U (Supermicro Sipper)
•Safety features: Detection of over-temperature of upper or lower limits;
detection of heater wire malfunction; protection from heating too little P/N 206-23790-94
circulating water; detection of sensor malfunction; independent
over-heat protection; over-current circuit protector Four sipper units with different flow cell types are available. The stepping
•Standard accessories: Lid with handles; rubber hose (4 m; inner diameter: motor-driven peristaltic pump ensures reliable and smooth aspiration of
8 mm; outer diameter: 12 mm; quantity: 1); hose clamps (4 pcs); sample solution.
instruction manual (Japanese and English) (Direct driving is possible from the UV-1280 so no interface is required.)
•Dimensions: W270 × H560 × D400 mm Standard Sample Volume
•Power requirements: 100 VAC, 1,250 VA, with 1.7-m power cord and Note
grounded plug 160L 2.0mL
•The use of a solenoid valve (fluoropolymer) (P/N 204-06599-01) and the SWA-2 160T 1.5mL
Note N∏-220P cannot be used for S-1700 or TMSPC-8. sample waste unit (P/N 206-23820-58) are recommended when strong acids, strong 160C 2.5mL
alkalis, or organic solvents are to be measured.
• The quantity of light passing through the cell is reduced, so it may not be possible
to satisfy the optical specifications of the instrument. 160U 0.5mL

CPS-100 Cell Positioner, Thermoelectrically Temperature Controlled

P/N 206-29500-42/43/58 Syringe Sipper
This attachment permits measurement of up to six sample cells under
constant-temperature conditions. Model P/N
Syringe Sipper N (Normal temperature type) 206-23890-51
•Number of cells: 6 on the sample side (temperature-controlled)
•Temperature control range: 16 °C to 60 °C Syringe Sipper CN 206-23890-92
(Constant temperature, water circulator type)
•Temperature display accuracy (difference from the true value): ±0.5 °C
•Temperature control precision (variation of temperature): ±0.1 °C The sipper unit employs a syringe-pump system. The liquid-contact
•Ambient temperature: 15 °C to 35 °C
surfaces are composed of fluoropolymer, glass, or quartz, imparting
A standard cell (P/N 200-34442) is not included. A USB adapter CPS
Note excellent chemical resistance and ease of maintenance, and allowing
(P/N 206-25234-91) is required. Purchase them separately.
measurement of almost any sample type. Further, the extremely high
repeatability of sipping volume (repeat precision: ±0.03 mL) makes it
ideal when performance validation is required. Note
• The sample compartment unit (P/N 206-60184-07) is
• The type of flow cell can be selected in accordance with the application. required.
• The flow cell can be changed independently for excellent ease of
TCC-100 Thermoelectrically Temperature-Controlled Cell Holder maintenance. • If a rectangular flow cell (micro) is used, attaching
mask R (206-88679) to the reference cell holder is
• Circulated-water temperature range: ambient to 60 °C (CN type) recommended to balance the light intensity.
P/N 206-29510-42/43/44
Flow cells available separately. Choose from the
recommended flow cells listed below.
Uses Peltier effect for controlling the sample and reference temperature,
so no thermostated bath or cooling water is required. Recommended Flow Cells
•Number of cells: 1 on the sample side (temperature-controlled) Model P/N Optical Path Dimensions of Standard Required
Length
Aperture
Sample Volume
•Temperature control range: 7 °C to 60 °C Rectangular (micro) 208-92113 10mm ø3mm 1.0mL
•Temperature display accuracy (difference from the true value): ±0.5 °C Rectangular (semi-micro) 208-92005 10mm H11×W3.5mm 5.0mL
•Temperature control precision (variation of temperature): ±0.1 °C
Note A standard cell (P/N 200-34442) is not included. Purchase it separately.

UV-1280
18 UV-VIS Spectrophotometer 19
