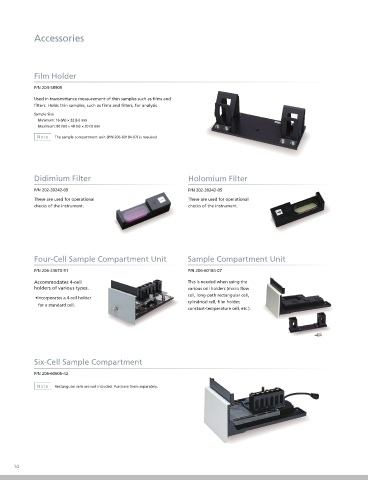

Page 14 - Shimadzu UV-1280

Accessories

Film Holder Spacers for Short-Path Cells Optical path length

P/N 204-58909 P/N 204-21473-XX
Used in transmittance measurement of thin samples such as films and • If samples are too concentrated and cannot be measured with the
filters. Holds thin samples, such as films and filters, for analysis. standard 10-mm path cell, they can be measured without dilution using P/N Optical Path Length
Sample Size a short-path cell. 204-21473-03 1mm
Minimum: 16 (W) × 32 (H) mm • Spacers are available for 1 mm, 2 mm, and 5 mm path cells. As shown in
Maximum: 80 (W) × 40 (H) × 20 (t) mm the figure at right, the spacer is mounted in a standard rectangular cell 204-21473-01 2mm
holder in conjunction with a short-path cell. 204-21473-02 5mm
Note The sample compartment unit (P/N 206-60184-07) is required.

Didimium Filter Holomium Filter
Universal Rectangular Cell Holder, Four-Cell Type
P/N 202-30242-09 P/N 202-30242-05
These are used for operational These are used for operational P/N 204-27208
checks of the instrument. checks of the instrument.
Holds rectangular cells with an optical path length of 10, 20, 30, or 50 mm.
Note
The four-cell sample compartment unit (P/N 206-23670-91) is required.
When a long-path rectangular cell is used on the reference side, its holder (P/N 204-28720) is additionally required.

Four-Cell Sample Compartment Unit Sample Compartment Unit
P/N 206-23670-91 P/N 206-60184-07

Accommodates 4-cell This is needed when using the
holders of various types. various cell holders (micro flow
cell, long-path rectangular cell,
•Incorporates a 4-cell holder Reference-Side Long-Path Rectangular Cell Holder
cylindrical cell, film holder,
for a standard cell.
constant-temperature cell, etc.). P/N 204-28720
If using a 4-cell-type universal rectangular cell holder,
use a reference-side cell holder if necessary.

Six-Cell Sample Compartment

P/N 206-60605-42
Long-Path Rectangular Cell Holder
Note Rectangular cells are not included. Purchase them separately.
P/N 204-23118-01
Holds rectangular cells with an optical path length of 10, 20, 30, or 50 mm.

Note The sample compartment unit (P/N 206-60184-07) is required.
The 100 mm rectangular cell cannot be used.

UV-1280
14 UV-VIS Spectrophotometer 15
