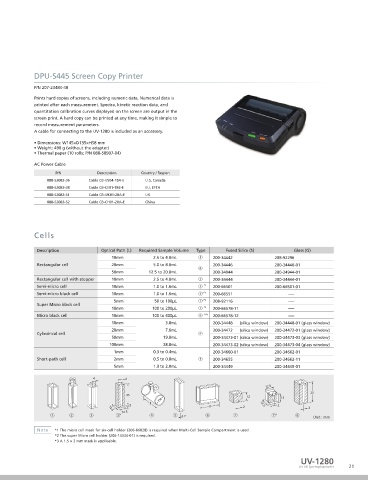

Page 21 - Shimadzu UV-1280

ASC-5 Auto Sample Changer DPU-S445 Screen Copy Printer

P/N 206-23810-92/93 P/N 207-23484-48
Combine with a Sipper 160 to build an automated multisample Prints hard copies of screens, including numeric data. Numerical data is
spectrophotometry system. printed after each measurement. Spectra, kinetic reaction data, and
quantitation calibration curves displayed on the screen are output in the
•The aspirating nozzle is programmed to move in the X, Y, and Z
(vertical) directions. screen print. A hard copy can be printed at any time, making it simple to
•Up to 8 sets of operational parameters, including the sizes of racks and record measurement parameters.
the numbers of test tubes, may be memorized in the battery back-up A cable for connecting to the UV-1280 is included as an accessory.
protected files.
•Up to 100 test tubes may be set together on the rack. • Dimensions: W145×D135×H58 mm
• Weight: 490 g (without the adapter)
• Thermal paper (10 rolls; P/N 088-58907-04)
Note A commercially available test tube stand, with a footprint smaller
than 220 × 220 mm, is applicable.
AC Power Cable
P/N Description Country / Region
088-52083-36 Cable CB-US04-18A-E U.S, Canada
10 mm Micro Flow-Thru Cell with Holder 088-52083-38 Cable CB-CE01-18B-E EU, EFTA
P/N 204-06222 088-52083-51 Cable CB-UK01-20A-E UK
088-52083-52 Cable CB-CH01-20A-E China
5 mm Micro Flow-Thru Cell with Holder
P/N 204-06222-01

Used for the continuous analysis of samples such as the liquids produced
Cells
by column chromatography.
•Inner diameter of tube: 1 or 2 mm
Description Optical Path (L) Required Sample Volume Type Fused Silica (S) Glass (G)
P/N Optical Path Length Volume 10mm 2.5 to 4.0mL 200-34442 208-92296
204-06222 10mm 0.3mL Rectangular cell 20mm 5.0 to 8.0mL 200-34446 200-34446-01
204-06222-01 5mm 0.15mL 50mm 12.5 to 20.0mL 200-34944 200-34944-01
Front Panel with Holes Rectangular cell with stopper 10mm 2.5 to 4.0mL 200-34444 200-34444-01
Semi-micro cell 10mm 1.0 to 1.6mL *1 200-66501 200-66501-01
P/N 204-27588-03
Semi-micro black cell 10mm 1.0 to 1.6mL *1 200-66551 —
Allows the tubes of a flow cell, for example, to be connected through Super Micro black cell 5mm 50 to 100µL *2 208-92116 —
the front panel of the instrument. 10mm 100 to 200µL *2 200-66578-11 —
Micro black cell 10mm 100 to 400µL *2*3 200-66578-12 —
Note The sample compartment unit (P/N 206-60184-07) is required.
10mm 3.8mL 200-34448 (silica window) 200-34448-01 (glass window)
20mm 7.6mL 200-34472 (silica window) 200-34472-01 (glass window)
Cylindrical cell
50mm 19.0mL 200-34473-01 (silica window) 200-34473-03 (glass window)
100mm 38.0mL 200-34473-02 (silica window) 200-34473-04 (glass window)
1mm 0.3 to 0.4mL 200-34660-01 200-34662-01
Short-path cell 2mm 0.5 to 0.8mL 200-34655 200-34662-11
Gilson 222 Connection Kit 5mm 1.3 to 2.0mL 200-34449 200-34449-01
P/N 206-80880-42 Connection 4 4
cable
This enables connection with the Gilson GX-271 Liquid Handler. The 12.5
liquid handler automatically performs a variety of pretreatments, 25
45 12
including sample dispensing and dilution, and the addition of reagents. 25ø 12
This connection kit interfaces the spectrophotometer and the liquid 12.5 3 2 12.5 2 2
handler. 12.5
Unit : mm
•The connection kit consists of a flow cell unit and connection cable.
Note The sample compartment unit (P/N 206-60184-07) is required. Note *1 The micro cell mask for six-cell holder (206-66828) is required when Multi-Cell Sample Compartment is used.
*2 The super Micro cell holder (206-14334-01) is required.
*3 A 1.5 × 3 mm mask is applicable.
Flow cell unit GX-271 Liquid Handle
UV-1280
20 UV-VIS Spectrophotometer 21
