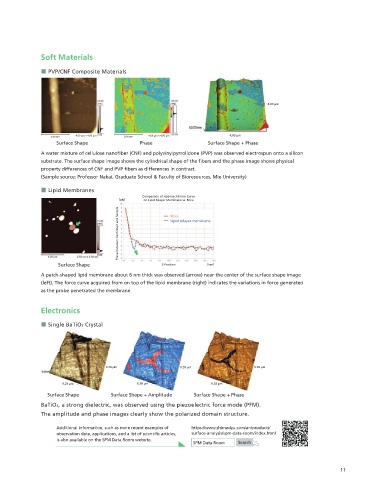

Page 11 - Shimadzu SPM-Nanoa

Soft Materials

˙ PVP/CNF Composite Materials

4.00 µm

4.00 µm × 4.00 µm 4.00 µm × 4.00 µm 4.00 µm
Surface Shape Phase Surface Shape + Phase
A water mixture of cellulose nanofiber (CNF) and polyvinylpyrrolidone (PVP) was observed electrospun onto a silicon
substrate. The surface shape image shows the cylindrical shape of the fibers and the phase image shows physical
property differences of CNF and PVP fibers as differences in contrast.
(Sample source: Professor Nakai, Graduate School & Faculty of Bioresources, Mie University)

˙ Lipid Membranes
Comparison of Approach Force Curve
ʦpNʧ on Lipid Bilayer Membrane vs. Mica
Force between Cantilever and Sample Lipid bilayer membrane
Mica

Surface Shape Z-Position ʦnmʧ
A patch-shaped lipid membrane about 6 nm thick was observed (arrow) near the center of the surface shape image
(left). The force curve acquired from on top of the lipid membrane (right) indicates the variations in force generated
as the probe penetrated the membrane.

Electronics

˙ Single BaTiO3 Crystal

0.28 µm 0.28 µm 0.28 µm

0.28 µm 0.28 µm 0.28 µm
Surface Shape Surface Shape + Amplitude Surface Shape + Phase
BaTiO3, a strong dielectric, was observed using the piezoelectric force mode (PFM).
The amplitude and phase images clearly show the polarized domain structure.

Additional information, such as more recent examples of https://www.shimadzu.com/an/products/
observation data, applications, and a list of scientific articles, surface-analysis/spm-data-room/index.html
is also available on the SPM Data Room website.
