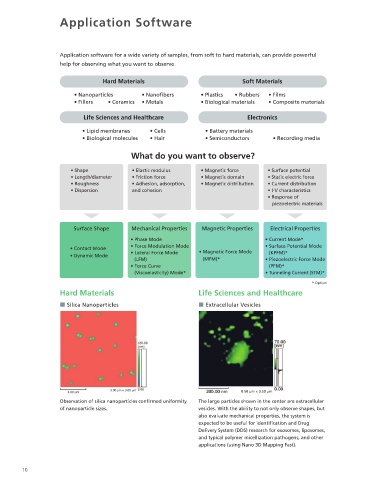

Page 10 - Shimadzu SPM-Nanoa

Application Software

Application software for a wide variety of samples, from soft to hard materials, can provide powerful
help for observing what you want to observe.

Hard Materials Soft Materials

• Nanoparticles • Nanofibers • Plastics • Rubbers • Films
• Fillers • Ceramics • Metals • Biological materials • Composite materials

Life Sciences and Healthcare Electronics
• Lipid membranes • Cells • Battery materials
• Biological molecules • Hair • Semiconductors • Recording media

What do you want to observe?

• Shape • Elastic modulus • Magnetic force • Surface potential
• Length/diameter • Friction force • Magnetic domain • Static electric force
• Roughness • Adhesion, adsorption, • Magnetic distribution • Current distribution
• Dispersion and cohesion • I-V characteristics
• Response of
piezoelectric materials

Surface Shape Mechanical Properties Magnetic Properties Electrical Properties

• Phase Mode • Current Mode*
• Contact Mode • Force Modulation Mode • Magnetic Force Mode • Surface Potential Mode
• Dynamic Mode • Lateral Force Mode (KPFM)*
(LFM) (MFM)* • Piezoelectric Force Mode
• Force Curve (PFM)*
(Viscoelasticity) Mode* • Tunneling Current (STM)*
* Option
Hard Materials Life Sciences and Healthcare
˙ Silica Nanoparticles ˙ Extracellular Vesicles

3.00 µm × 3.00 µm 0.50 µm × 0.50 µm
Observation of silica nanoparticles confirmed uniformity The large particles shown in the center are extracellular
of nanoparticle sizes. vesicles. With the ability to not only observe shapes, but
also evaluate mechanical properties, the system is
expected to be useful for identification and Drug
Delivery System (DDS) research for exosomes, liposomes,
and typical polymer micellization pathogens, and other
applications (using Nano 3D Mapping Fast).
