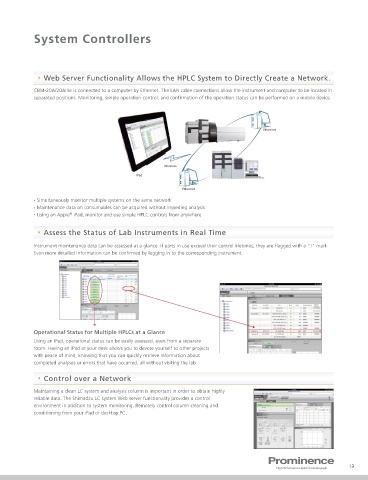

System Controllers

Web Server Functionality Allows the HPLC System to Directly Create a Network.

CBM-20A/20Alite is connected to a computer by Ethernet. The LAN cable connections allow the instrument and computer to be located in
separated positions. Monitoring, simple operation control, and confirmation of the operation status can be performed on a mobile device.

Ethernet

Wireless
iPad

Ethernet
Simultaneously monitor multiple systems on the same network
Maintenance data on consumables can be acquired without impeding analysis
Using an Apple iPad, monitor and use simple HPLC controls from anywhere
®
Assess the Status of Lab Instruments in Real Time

Instrument maintenance data can be assessed at a glance. If parts in use exceed their control lifetimes, they are flagged with a "!" mark.
Even more detailed information can be confirmed by logging in to the corresponding instrument.

Operational Status for Multiple HPLCs at a Glance
Using an iPad, operational status can be easily assessed, even from a separate
room. Having an iPad at your desk allows you to devote yourself to other projects
with peace of mind, knowing that you can quickly retrieve information about
completed analyses or errors that have occurred, all without visiting the lab.

Control over a Network
Maintaining a clean LC system and analysis column is important in order to obtain highly
reliable data. The Shimadzu LC system Web server functionality provides a control
environment in addition to system monitoring. Remotely control column cleaning and
conditioning from your iPad or desktop PC.
