P. 13

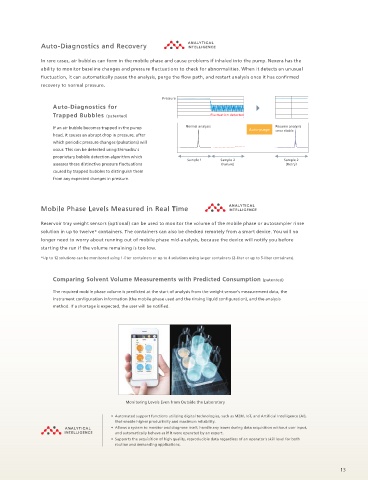

Nexera Series Features for   Auto-Diagnostics and Recovery

 Assisting Analytical Operations  In rare cases, air bubbles can form in the mobile phase and cause problems if inhaled into the pump. Nexera has the

               ability to monitor baseline changes and pressure fluctuations to check for abnormalities. When it detects an unusual
               fluctuation, it can automatically pause the analysis, purge the flow path, and restart analysis once it has confirmed
 The same outstanding instrument performance capabilities offered by Nexera series systems are also available in   recovery to normal pressure.
 Nexera XS inert systems. For a more advanced analysis, Nexera XS inert can be used with Analytical Intelligence
                                                       Pressure
 technology for automatic analysis.
                   Auto-Diagnostics for
                   Trapped Bubbles (patented)                          Fluctuation detected
                   If an air bubble becomes trapped in the pump   Normal analysis   Auto-purge  Resume analysis
                                                                                            once stable
 Stable Baseline   head, it causes an abrupt drop in pressure, after
                   which periodic pressure changes (pulsations) will
 Baseline fluctuations can affect peak   Room Temp.  Area %RSD  occur. This can be detected using Shimadzu's
 25 °C  (n=20)     proprietary bubble detection algorithm which
 area calculations, reducing the accuracy   20 °C  0.62%       Sample 1   Sample 2             Sample 2
 mAU               assesses these distinctive pressure fluctuations        (Failure)             (Retry)
 of quantitative results. The SPD-M40   2.5  SPD-M40
 0                 caused by trapped bubbles to distinguish them
 photodiode array detector's "Advanced   -2.5  from any expected changes in pressure.
 TC-Optics" function adjusts the   -5.0
 -7.5  Area %RSD
 temperature of the flow cell, lamp, and   -10.0  Another Vender’s  (n=20)
 -12.5  1.87%
 optical system to lessen the impact of   PDA Detector
 0  50  100  150  200  250  min
 external temperature changes. Noise   Mobile Phase Levels Measured in Real Time
 Room Temperature vs PDA Baseline
 and drift have also been reduced by
 (Comparison to Comparable Non-Shimadzu Model)
 40% compared to the previous model.  Reservoir tray weight sensors (optional) can be used to monitor the volume of the mobile phase or autosampler rinse
               solution in up to twelve* containers. The containers can also be checked remotely from a smart device. You will no
               longer need to worry about running out of mobile phase mid-analysis, because the device will notify you before
 Advanced TC-Optics (SPD-M40) (patented)  Heat discharged  starting the run if the volume remaining is too low.
 Heat removal
 With the SPD-M40, in addition to conventional cell temperature   mechanism  *Up to 12 solutions can be monitored using 1-liter containers or up to 4 solutions using larger containers (2-liter or up to 5-liter containers).
 regulation, the lamp and spectrometer, which are responsible for
 thermal effects on absorbance, are also thermally regulated,
 Monochromator
 further reducing baseline fluctuations caused by the light source.  Light  Comparing Solvent Volume Measurements with Predicted Consumption (patented)
 source
 lamp  Cell
 Triple            The required mobile phase volume is predicted at the start of analysis from the weight sensor's measurement data, the
 temperature-control  instrument configuration information (the mobile phase used and the rinsing liquid configuration), and the analysis
                   method. If a shortage is expected, the user will be notified.

 Proprietary Structure for Ensuring Sample Cooling


 SIL-40 series autosamplers include a direct-access function that helps improve analytical operating efficiency by allowing
 additional sample vials or MTP plates to be inserted even during data acquisition. A dry air flow control system ensures
 reliable sample cooling and relieves operators from the inconvenience of dealing with condensation water.



 Dry Air Flow Control (patented)
 The sample rack serves the role of
 Minimizes sample temperature changes
 Room
 controlling the flow of cooling air   temperature
 inside the autosampler. Even if the   Dry cooling air flow  air  Monitoring Levels Even from Outside the Laboratory
 sample rack is pulled out, ingress of
 external air is prevented to inhibit   •  Automated support functions utilizing digital technologies, such as M2M, IoT, and Artificial Intelligence (AI),
                                       that enable higher productivity and maximum reliability.
 the formation of condensation
                                      •  Allows a system to monitor and diagnose itself, handle any issues during data acquisition without user input,
 inside the autosampler or any sharp   and automatically behave as if it were operated by an expert.
 Changes the direction of air circulation
 increases in sample temperature.     •  Supports the acquisition of high quality, reproducible data regardless of an operator's skill level for both
                                       routine and demanding applications.
