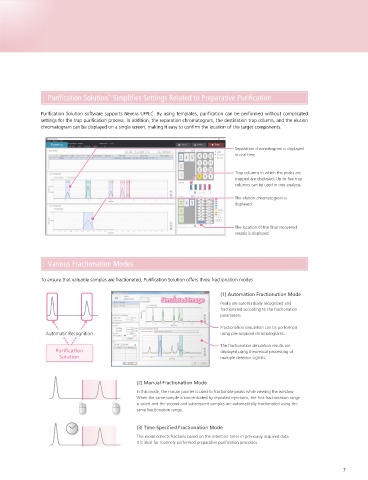

Purification Solution Simplifies Settings Related to Preparative Purification
™

Puri cation Solution software supports Nexera UFPLC. By using templates, puri cation can be performed without complicated
settings for the trap puri cation process. In addition, the separation chromatogram, the destination trap column, and the elution
chromatogram can be displayed on a single screen, making it easy to con rm the location of the target components.

Separation chromatogram is displayed
in real time.

Trap columns in which the peaks are
trapped are displayed. Up to ve trap
columns can be used in one analysis.
The elution chromatogram is
displayed.

The location of the nal recovered
vessels is displayed.

Various Fractionation Modes

To ensure that valuable samples are fractionated, Puri cation Solution offers three fractionation modes.

(1) Automation Fractionation Mode
Simulated Image
Peaks are automatically recognized and
fractionated according to the fractionation
parameters.
Fractionation simulation can be performed
Automatic Recognition using pre-acquired chromatograms.

The fractionation simulation results are
Puri cation displayed using theoretical processing of
Solution multiple detector signals.

(2) Manual Fractionation Mode
In this mode, the mouse pointer is used to fractionate peaks while viewing the window.
When the same sample is concentrated by repeated injections, the rst fractionation range
is saved and the second and subsequent samples are automatically fractionated using the
same fractionation range.

(3) Time-Speci ed Fractionation Mode
This mode collects fractions based on the retention times in previously acquired data.
It is ideal for routinely performed preparative puri cation processes.
