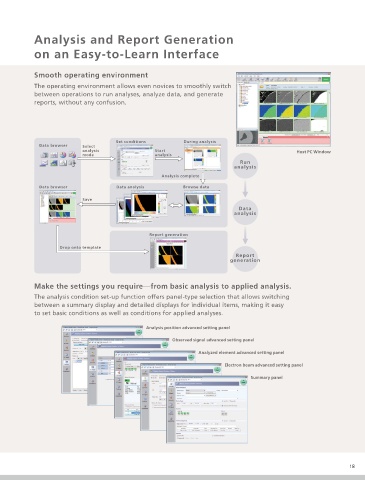

Analysis and Report Generation ←谷折り （幅195mm）
on an Easy-to-Learn Interface
Smooth operating environment
The operating environment allows even novices to smoothly switch
between operations to run analyses, analyze data, and generate
reports, without any confusion.
Set conditions During analysis
Data browser Select
analysis Start Host PC Window
mode analysis
Run
analysis
Analysis complete
Data browser Data analysis Browse data
Save
Data
analysis
Report generation
Drop onto template
Report
generation
Make the settings you require—from basic analysis to applied analysis.
The analysis condition set-up function offers panel-type selection that allows switching
between a summary display and detailed displays for individual items, making it easy
to set basic conditions as well as conditions for applied analyses.
Analysis position advanced setting panel
Observed signal advanced setting panel
Analyzed element advanced setting panel
Electron beam advanced setting panel
Summary panel
