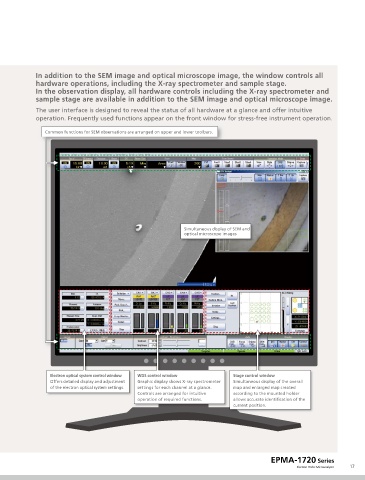

In addition to the SEM image and optical microscope image, the window controls all
hardware operations, including the X-ray spectrometer and sample stage.
In the observation display, all hardware controls including the X-ray spectrometer and
sample stage are available in addition to the SEM image and optical microscope image.
The user interface is designed to reveal the status of all hardware at a glance and offer intuitive
operation. Frequently used functions appear on the front window for stress-free instrument operation.

Common functions for SEM observations are arranged on upper and lower toolbars.

Simultaneous display of SEM and
optical microscope images

Electron optical system control window WDS control window Stage control window
Offers detailed display and adjustment Graphic display shows X-ray spectrometer Simultaneous display of the overall
of the electron optical system settings. settings for each channel at a glance. map and enlarged map created
Controls are arranged for intuitive according to the mounted holder
operation of required functions. allows accurate identification of the
current position.

EPMA-1720 Series
Electron Probe Microanalyzer 17
