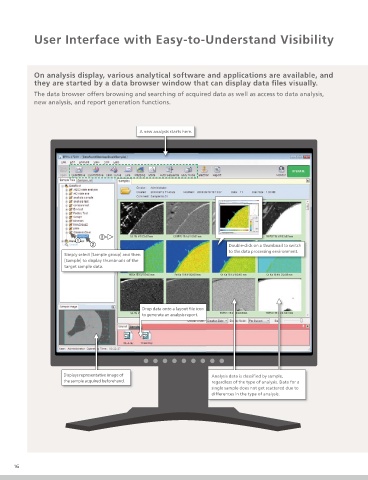

User Interface with Easy-to-Understand Visibility （幅213mm） ←谷折り （幅195mm）
On analysis display, various analytical software and applications are available, and
they are started by a data browser window that can display data les visually .
The data browser offers browsing and searching of acquired data as well as access to data analysis,
new analysis, and report generation functions.
A new analysis starts here.
Double-click on a thumbnail to switch
to the data processing environment.
Simply select [Sample group] and then
[Sample] to display thumbnails of the
target sample data.
Drop data onto a layout file icon
to generate an analysis report.
Displays representative image of Analysis data is classified by sample,
the sample acquired beforehand. regardless of the type of analysis. Data for a
single sample does not get scattered due to
differences in the type of analysis.
