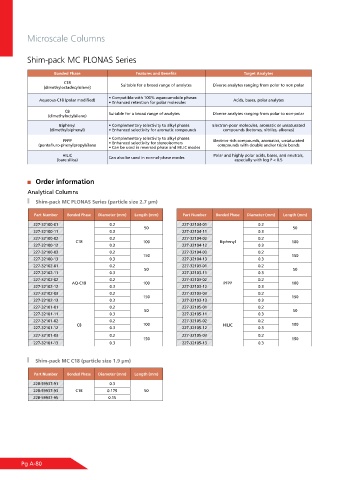

Page 84 - Shimadu Consumables Catalog

Microscale Columns

Shim-pack MC PLONAS Series

Bonded Phase Features and Benefits Target Analytes
C18
(dimethyloctadecylsilane) Suitable for a broad range of analytes Diverse analytes ranging from polar to non polar
• Compatible with 100% aqueoumobile phases
Aqueous-C18 (polar modified) Acids, bases, polar analytes
• Enhanced retention for polar molecules
C8
(dimethyloctylsilane) Suitable for a broad range of analytes Diverse analytes ranging from polar to non-polar
Biphenyl • Complementary selectivity to alkyl phases Electron-poor molecules, aromatic or unsaturated
(dimethylbiphenyl) • Enhanced selectivity for aromatic compounds compounds (ketones, nitriles, alkenes)
• Complementary selectivity to alkyl phases
PFPP Electron-rich compounds, aromatics, unsaturated
(pentafluro-phenylpropylsilane • Enhanced selectivity for stereoisomers compounds with double and/or triple bonds
• Can be used in reversed phase and HILIC modes
HILIC Polar and highly polar acids, bases, and neutrals,
(bare silica) Can also be used in normal-phase modes especially with log P < 0.5

Order information
Analytical Columns

Shim-pack MC PLONAS Series (particle size 2.7 μm)

Part Number Bonded Phase Diameter (mm) Length (mm) Part Number Bonded Phase Diameter (mm) Length (mm)
227-32100-01 0.2 227-32104-01 0.2
50 50
227-32100-11 0.3 227-32104-11 0.3
227-32100-02 0.2 227-32104-02 0.2
C18 100 Biphenyl 100
227-32100-12 0.3 227-32104-12 0.3
227-32100-03 0.2 227-32104-03 0.2
150 150
227-32100-13 0.3 227-32104-13 0.3
227-32102-01 0.2 227-32103-01 0.2
50 50
227-32102-11 0.3 227-32103-11 0.3
227-32102-02 0.2 227-32103-02 0.2
AQ-C18 100 PFPP 100
227-32102-12 0.3 227-32103-12 0.3
227-32102-03 0.2 227-32103-03 0.2
150 150
227-32102-13 0.3 227-32103-13 0.3
227-32101-01 0.2 227-32105-01 0.2
50 50
227-32101-11 0.3 227-32105-11 0.3
227-32101-02 0.2 227-32105-02 0.2
C8 100 HILIC 100
227-32101-12 0.3 227-32105-12 0.3
227-32101-03 0.2 227-32105-03 0.2
150 150
227-32101-13 0.3 227-32105-13 0.3

Shim-pack MC C18 (particle size 1.9 μm)

Part Number Bonded Phase Diameter (mm) Length (mm)
228-59937-91 0.3
228-59937-93 C18 0.175 50
228-59937-95 0.15

Pg A-80
