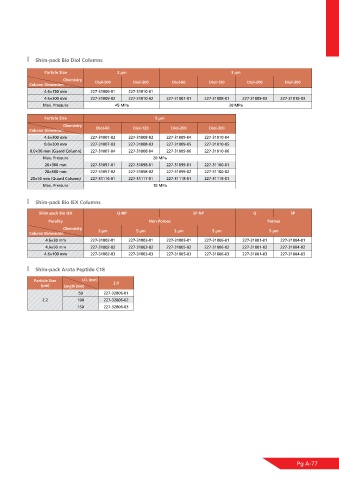

Page 81 - Shimadu Consumables Catalog

Shim-pack Bio Diol Columns

Particle Size 2 μm 3 μm
Chemistry
Column Dimension Diol-200 Diol-300 Diol-60 Diol-120 Diol-200 Diol-300
4.6×150 mm 227-31009-01 227-31010-01
4.6×300 mm 227-31009-02 227-31010-02 227-31007-01 227-31008-01 227-31009-03 227-31010-03
Max. Pressure 45 MPa 20 MPa

Particle Size 5 μm
Chemistry
Column Dimension Diol-60 Diol-120 Diol-200 Diol-300
4.6×300 mm 227-31007-02 227-31008-02 227-31009-04 227-31010-04
8.0×300 mm 227-31007-03 227-31008-03 227-31009-05 227-31010-05
8.0×30 mm (Guard Column) 227-31007-04 227-31008-04 227-31009-06 227-31010-06
Max. Pressure 20 MPa
20×300 mm 227-31097-01 227-31098-01 227-31099-01 227-31100-01
20×500 mm 227-31097-02 227-31098-02 227-31099-02 227-31100-02
20×50 mm (Guard Column) 227-31116-01 227-31117-01 227-31118-01 227-31119-01
Max. Pressure 10 MPa

Shim-pack Bio IEX Columns
Shim-pack Bio IEX Q-NP SP-NP Q SP
Porality Non-Porous Porous
Chemistry 3 μm 5 μm 3 μm 5 μm 5 μm
Column Dimension
4.6×30 mm 227-31002-01 227-31003-01 227-31005-01 227-31006-01 227-31001-01 227-31004-01
4.6×50 mm 227-31002-02 227-31003-02 227-31005-02 227-31006-02 227-31001-02 227-31004-02
4.6×100 mm 227-31002-03 227-31003-03 227-31005-03 227-31006-03 227-31001-03 227-31004-03

Shim-pack Arata Peptide C18

Particle Size I.D. (mm)
(μm) Length (mm) 2.0
50 227-32806-01
2.2 100 227-32806-02
150 227-32806-03

Pg A-77
