Page 214 - Shimadu Consumables Catalog
P. 214

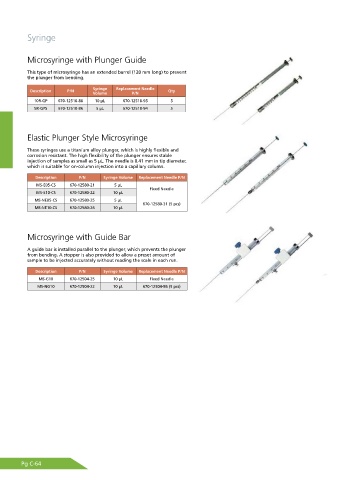

Syringe
Microsyringe with Plunger Guide
This type of microsyringe has an extended barrel (120 mm long) to prevent
the plunger from bending.
Syringe Replacement Needle
Description P/N Qty
Volume P/N
10R-GP 670-12510-80 10 μL 670-12510-95 5
5R-GPS 670-12510-86 5 μL 670-12510-94 5
Elastic Plunger Style Microsyringe
These syringes use a titanium alloy plunger, which is highly flexible and
corrosion resistant. The high flexibility of the plunger ensures stable
injection of samples as small as 5 μL. The needle is 0.41 mm in tip diameter,
which is suitable for on-column injection into a capillary column.
Description P/N Syringe Volume Replacement Needle P/N
MS-E05-CS 670-12580-21 5 μL
Fixed Needle
MS-E10-CS 670-12580-22 10 μL
MS-NE05-CS 670-12580-25 5 μL
670-12580-31 (5 pcs)
MS-NE10-CS 670-12580-26 10 μL
Microsyringe with Guide Bar
A guide bar is installed parallel to the plunger, which prevents the plunger
from bending. A stopper is also provided to allow a preset amount of
sample to be injected accurately without reading the scale in each run.
Description P/N Syringe Volume Replacement Needle P/N
MS-G10 670-12504-25 10 μL Fixed Needle
MS-NG10 670-12504-22 10 μL 670-12504-86 (5 pcs)
Pg C-64
