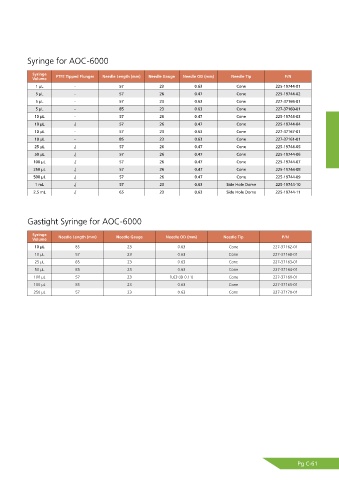

Syringe for AOC-6000

Syringe PTFE Tipped Plunger Needle Length (mm) Needle Gauge Needle OD (mm) Needle Tip P/N
Volume
1 μL - 57 23 0.63 Cone 225-19744-01
5 μL - 57 26 0.47 Cone 225-19744-02
5 μL - 57 23 0.63 Cone 227-37166-01
5 μL - 85 23 0.63 Cone 227-37160-01
10 μL - 57 26 0.47 Cone 225-19744-03
10 μL √ 57 26 0.47 Cone 225-19744-04
10 μL - 57 23 0.63 Cone 227-37167-01
10 μL - 85 23 0.63 Cone 227-37161-01
25 μL √ 57 26 0.47 Cone 225-19744-05
50 μL √ 57 26 0.47 Cone 225-19744-06
100 μL √ 57 26 0.47 Cone 225-19744-07
250 μL √ 57 26 0.47 Cone 225-19744-08
500 μL √ 57 26 0.47 Cone 225-19744-09
1 mL √ 57 23 0.63 Side Hole Dome 225-19744-10
2.5 mL √ 65 23 0.63 Side Hole Dome 225-19744-11

Gastight Syringe for AOC-6000

Syringe Needle Length (mm) Needle Gauge Needle OD (mm) Needle Tip P/N
Volume
10 μL 85 23 0.63 Cone 227-37162-01
10 μL 57 23 0.63 Cone 227-37168-01
25 μL 85 23 0.63 Cone 227-37163-01
50 μL 85 23 0.63 Cone 227-37164-01
100 μL 57 23 0.63 (ID 0.11) Cone 227-37169-01
100 μL 85 23 0.63 Cone 227-37165-01
250 μL 57 23 0.63 Cone 227-37170-01

Pg C-61
