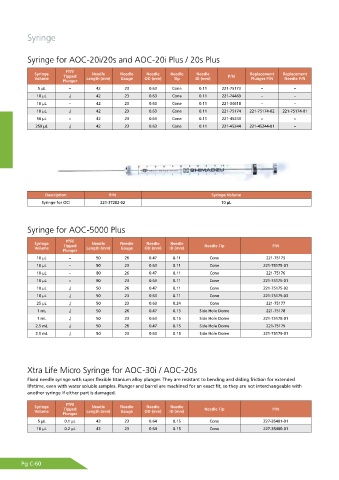

Page 210 - Shimadu Consumables Catalog

Syringe

Syringe for AOC-20i/20s and AOC-20i Plus / 20s Plus

PTFE
Syringe Tipped Needle Needle Needle Needle Needle P/N Replacement Replacement
Volume Length (mm) Gauge OD (mm) Tip ID (mm) Plunger P/N Needle P/N
Plunger
5 μL − 42 23 0.63 Cone 0.11 221-75173 − −
10 μL √ 42 23 0.63 Cone 0.11 221-74469 − −
10 μL − 42 23 0.63 Cone 0.11 221-34618 − −
10 μL √ 42 23 0.63 Cone 0.11 221-75174 221-75174-02 221-75174-01
50 μL − 42 23 0.63 Cone 0.11 221-45243 − −
250 μL √ 42 23 0.63 Cone 0.11 221-45244 221-45244-01 −

Description P/N Syringe Volume
Syringe for OCI 221-37282-02 10 μL

Syringe for AOC-5000 Plus

PTFE
Syringe Tipped Needle Needle Needle Needle Needle Tip P/N
Volume Length (mm) Gauge OD (mm) ID (mm)
Plunger
10 μL − 50 26 0.47 0.11 Cone 221-75175
10 μL − 50 23 0.63 0.11 Cone 221-75175-01
10 μL − 80 26 0.47 0.11 Cone 221-75176
10 μL − 80 23 0.63 0.11 Cone 221-75176-01
10 μL √ 50 26 0.47 0.11 Cone 221-75175-02
10 μL √ 50 23 0.63 0.11 Cone 221-75175-03
25 μL √ 50 23 0.63 0.24 Cone 221-75177
1 mL √ 50 26 0.47 0.15 Side Hole Dome 221-75178
1 mL √ 50 23 0.63 0.15 Side Hole Dome 221-75178-01
2.5 mL √ 50 26 0.47 0.15 Side Hole Dome 221-75179
2.5 mL √ 50 23 0.63 0.15 Side Hole Dome 221-75179-01

Xtra Life Micro Syringe for AOC-30i / AOC-20s

Fixed needle syringe with super flexible titanium alloy plunger. They are resistant to bending and sliding friction for extended
lifetime, even with water soluble samples. Plunger and barrel are machined for an exact fit, so they are not interchangeable with
another syringe if either part is damaged.
PTFE
Syringe Tipped Needle Needle Needle Needle Needle Tip P/N
Volume Length (mm) Gauge OD (mm) ID (mm)
Plunger
5 μL 0.1 μL 43 23 0.64 0.15 Cone 227-35401-01
10 μL 0.2 μL 43 23 0.64 0.15 Cone 227-35400-01

Pg C-60
